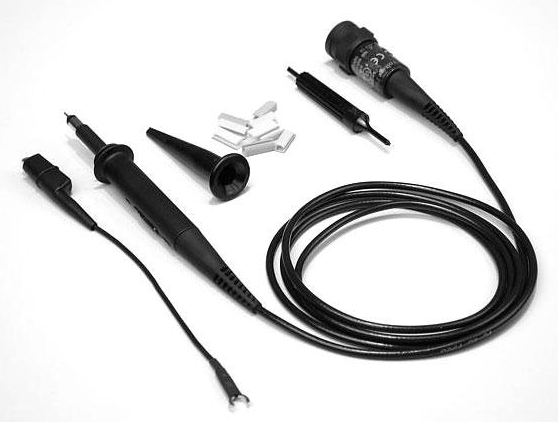

Tektronix P2220 Accessories
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Tektronix P2220 is a high-quality oscilloscope probe designed for use with Tektronix oscilloscopes. To enhance the functionality and versatility of the P2220 probe, Tektronix offers a range of accessories. These accessories include various types of probe tips, such as the standard 3.5mm and 2.5mm tips, as well as the micro grabber tip for easier connection to small components. Additionally, Tektronix provides a selection of ground leads and grounding accessories to ensure accurate measurements and minimize noise interference. The P2220 accessories also include a range of probe adapters and attenuators, allowing users to adapt the probe for different applications and signal levels. With these accessories, users can expand the capabilities of their Tektronix P2220 probe and optimize their oscilloscope measurements.
Specifications
– Included accessories: one pair of hook-style probes, ground lead, instruction manual, and warranty card
– Probe type: Passive voltage probe
– Bandwidth: 200 MHz
– Attenuation ratio: 1:1, 10:1 switchable
– Input resistance: 1 MΩ ± 2% // 20 pF ± 3 pF (1:1); 10 MΩ ± 2% // 15 pF ± 3 pF (10:1)
– Input capacitance: 1.5 pF (1:1); 15 pF (10:1)
– Input voltage: 300 Vrms CAT II (1:1); 600 Vrms CAT II (10:1)
– Compensation range: 10-35 pF
– Maximum voltage between IEC 61010-031 Common Mode Reference and earth ground: 600 Vrms CAT II
– Length of probe: 2 meters (6.6 feet)
– Operating temperature: -20°C to +75°C (-4°F to +167°F)
– Storage temperature: -40°C to +80°C (-40°F to +176°F)
– Dimensions: 153 mm (6.02 inches) length x 15 mm (0.59 inches) diameter
– Weight: 50 g (1.76 oz)
Tektronix P2220 is also available with the following specs and model:
- Probe – Passive – 1X / 10X DC – 200MHz – 1Megaohm / 110pF / 10Megaohm/ 17pF 150V CAT II / 300V CAT II
