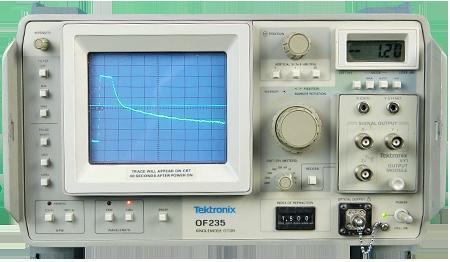

Tektronix OF235 TDR / OTDR
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Tektronix OF235 TDR/OTDR is a powerful and versatile device used for testing and analyzing optical fibers in various applications. This advanced test and measurement equipment combines the capabilities of Time Domain Reflectometry (TDR) and Optical Time Domain Reflectometry (OTDR) to provide accurate and detailed information about the characteristics and performance of optical fibers. With its high-resolution display and user-friendly interface, the OF235 TDR/OTDR allows for precise measurements of insertion loss, fiber length, and attenuation, as well as the detection and localization of faults like breaks, bends, and splices. Whether used in telecommunications, data centers, or network installation and maintenance, the Tektronix OF235 TDR/OTDR is a reliable tool that helps ensure the quality and reliability of fiber optic systems.
Specifications
– Model: Tektronix OF235 TDR / OTDR
– Type: Handheld Time Domain Reflectometer (TDR) and Optical Time Domain Reflectometer (OTDR)
– Display: 5.7-inch color TFT LCD touch screen
– Fiber Types: Single-mode and multimode
– Wavelengths: 1310 nm and 1550 nm (single-mode); 850 nm and 1300 nm (multimode)
– Pulse Widths: 3 ns to 20 μs (TDR mode); 3 ns to 10 μs (OTDR mode)
– Dynamic Range: Up to 40 dB (single-mode); up to 35 dB (multimode)
– Distance Range: Up to 10 km (single-mode); up to 4 km (multimode)
– Event Dead Zone: < 1 m (single-mode); < 0.8 m (multimode)
– Attenuation Dead Zone: < 4 m
– Measurement Units: dB/dBm/mW
– Data Storage: Internal memory and USB flash drive support
– Connectivity: USB, Ethernet, and Bluetooth
– Battery Life: Up to 8 hours
– Weight: Approximately 1.6 kg
– Dimensions: 258 mm x 172 mm x 67 mm
– Operating Temperature: 0°C to 40°C
Tektronix OF235 is also available with the following specs and model:
- Dual Wavelength Fiber Optic Time Domain Reflectometer – OTDR
