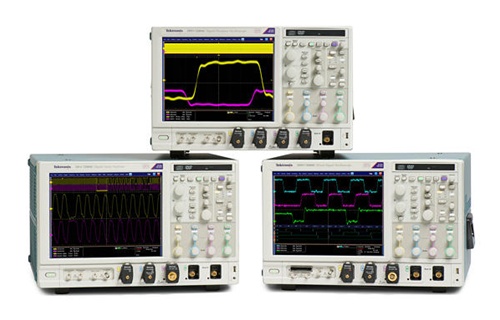

Tektronix Mso70404 4 Ghz, 25 Gs/S, 4 + 16 Logic Ch, Oscilloscope
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Tektronix MSO70404 is a high-performance oscilloscope designed for advanced signal analysis and measurement capabilities. With a bandwidth of 4 GHz and a sample rate of 25 Gs/S, it offers exceptional accuracy and precision in capturing and analyzing signals. The oscilloscope features four analog channels and 16 logic channels, providing users with the ability to simultaneously capture and analyze both analog and digital signals. This versatility makes it an ideal tool for engineers and researchers working in various fields, including telecommunications, embedded systems, and digital design. The Tektronix MSO70404 is known for its reliable performance, user-friendly interface, and extensive measurement and analysis tools, making it a trusted choice for professionals in need of a high-quality oscilloscope.
Specifications
– Model: Tektronix MSO70404
– Bandwidth: 4 GHz
– Sample Rate: 25 Gs/S
– Channels: 4 analog + 16 logic
– Analog Channels: 4
– Logic Channels: 16
– Resolution: 12 bits
– Maximum Record Length: 62.5 Mpts
– Vertical Sensitivity Range: 1 mV/div to 10 V/div
– Capture Rate: > 500,000 waveforms per second
– Trigger Types: Edge, Pulse Width, Runt, Timeout, Logic, Setup/Hold, Rise/Fall Time, Video, Pattern, Window, Serial
– Display: 15.6-inch color touch screen
– Connectivity: USB, Ethernet, GPIB, RS-232, HDMI
– Supported Standards: USB 2.0, Ethernet, LXI, GPIB, RS-232, HDMI
– Dimensions: 17.3″ x 8.9″ x 8.6″ (439 mm x 227 mm x 218 mm)
– Weight: 17.3 lbs (7.8 kg)
