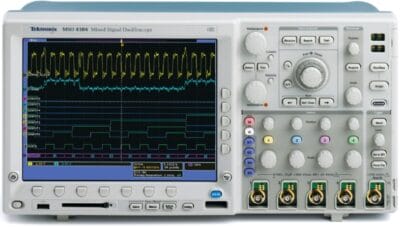

Tektronix Mso4104 1 Ghz, 5 Gs/S, 10 M Record Length, 4+16 Channel Mixed-Signal
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Tektronix MSO4104 is a high-performance oscilloscope designed for professionals and engineers working in various fields such as electronics, telecommunications, and research. With a bandwidth of 1 GHz and a sample rate of 5 Gs/s, this oscilloscope offers excellent signal fidelity and accuracy, ensuring precise measurements and analysis. It also boasts an impressive 10 M record length, allowing users to capture and analyze long-duration waveforms in detail. Additionally, the MSO4104 features both analog and digital channels, with 4 analog and 16 digital channels, making it a versatile tool for mixed-signal applications. Its advanced features, intuitive user interface, and robust build quality make the Tektronix MSO4104 a reliable and efficient choice for professionals in need of a high-performance oscilloscope.
Specifications
– Model: Tektronix Mso4104
– Bandwidth: 1 GHz
– Sample Rate: 5 Gs/s
– Record Length: 10 M
– Channels: 4+16 (4 analog and 16 digital)
– Mixed-Signal Capability: Yes
– Analog Channels: 4
– Digital Channels: 16
– Input Impedance: 1 MΩ || 14 pF
– Vertical Resolution: 8 bits
– Rise Time: ≤350 ps
– Input Voltage Range: ±1 V
– Trigger Types: Edge, Pulse Width, Runt, Timeout, Transition, Setup and Hold, Window, Logic, Serial, I2C, SPI, CAN, LIN, FlexRay, I2S, RS-232/422/485/UART, USB 2.0, Ethernet
– Connectivity: USB, LAN, GPIB (optional)
– Display: 10.4-inch TFT color touch screen
– Dimensions: 445 mm x 235 mm x 150 mm
– Weight: 6.2 kg
Tektronix Mso4104 is also available with the following specs and model:
- Oscilloscope Mixed Signal Digital 1GHz 5 GS/S Analog Chs 4 / Dig Chs 16
