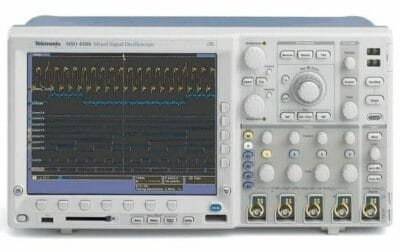

Tektronix Mso4054 500 Mhz, 2.5 Gs/S, 10 M Record Length, 4+16 Channel Mixed-Si
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Tektronix MSO4054 is a powerful and versatile oscilloscope that offers a range of advanced features for professionals in the electronics industry. With a bandwidth of 500 MHz and a sampling rate of 2.5 Gs/S, it provides accurate and detailed measurements for various applications. The oscilloscope also boasts a generous record length of 10 M, allowing users to capture and analyze complex waveforms with precision. Additionally, it offers 4 analog channels and 16 digital channels, making it a mixed-signal solution suitable for both analog and digital circuit analysis. Whether it’s for debugging, design validation, or troubleshooting, the Tektronix MSO4054 is a reliable tool that can handle demanding tasks with ease.
Specifications
– Model: Tektronix Mso4054
– Bandwidth: 500 MHz
– Sampling Rate: 2.5 Gs/S
– Record Length: 10 M
– Channel Configuration: 4 analog channels + 16 digital channels
– Mixed-Signal Capability: Yes
– Digital Channels: Compatible with various logic families including CMOS, TTL, ECL, PECL
– Waveform Capture Rate: Up to 50,000 waveforms per second
– Display: 10.4-inch color display with touch screen functionality
– Triggering: Advanced triggering capabilities including edge, pulse width, runt, setup/hold violation, etc.
– Serial Bus Analysis: Support for various serial protocols such as I2C, SPI, UART, CAN, LIN, etc.
– Connectivity: USB, LXI, GPIB, Ethernet, VGA, and HDMI ports available for easy connectivity and data transfer
– Software: Comes with analysis and debugging software for in-depth waveform analysis and troubleshooting.
Tektronix Mso4054 is also available with the following specs and model:
- Oscilloscope Mixed Signal 500 MHz 2.5 GS/s Analog Chs 4 / Dig Chs 16
