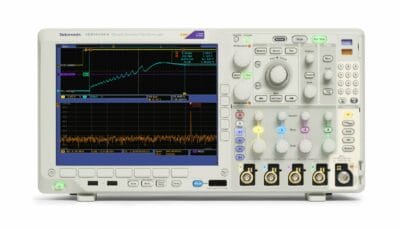

Tektronix Mdo4104-6 Mixed Domain Oscilloscope; (4) 1 Ghz Analog Channels, (16) D
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Tektronix MDO4104-6 Mixed Domain Oscilloscope is a versatile and powerful instrument designed for engineers and technicians working in various fields. With its (4) 1 GHz analog channels, it allows for precise measurement and analysis of analog signals. Additionally, it features (16) digital channels, enabling the capture and analysis of digital signals with utmost accuracy. This oscilloscope offers a wide range of capabilities, including advanced triggering, waveform analysis, and spectrum analysis. The large display screen provides a clear and detailed view of waveforms, making it easier for users to analyze and troubleshoot their designs. With its user-friendly interface and robust performance, the Tektronix MDO4104-6 is an essential tool for any professional working with electronic systems.
Specifications
– Tektronix MDO4104-6 Mixed Domain Oscilloscope
– (4) 1 GHz analog channels
– (16) digital channels
– Bandwidth: 1 GHz
– Sample rate: 5 GS/s
– Maximum record length: 20 Mpoints
– Vertical resolution: 12 bits
– Rise time: <350 ps
– Input impedance: 1 MΩ || 13 pF
– Maximum input voltage: 300 Vrms CAT II
– Trigger types: Edge, Pulse Width, Runt, Timeout, Window, Logic, Setup/Hold, Rise/Fall Time, Video, Pattern, State, Serial
– Display: 12.1-inch color touchscreen display
– Built-in spectrum analyzer: frequency range up to 3 GHz
– Arbitrary/Function Generator: 50 MHz frequency range with 128 MSa memory depth
– Digital voltmeter: 6-digit DVM for voltage measurements
– Serial protocol support: I2C, SPI, RS-232/422/485/UART, CAN, LIN, FlexRay, MIL-STD-1553, ARINC 429, Ethernet, USB
– Connectivity options: USB, LAN, GPIB (optional)
Tektronix Mdo4104-6 is also available with the following specs and model:
- OSCILLOSCOPE – 4CH
