Tektronix Mdo4104-3 Mixed Domain Oscilloscope; (4) 1 Ghz Analog Channels, (16) D
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description

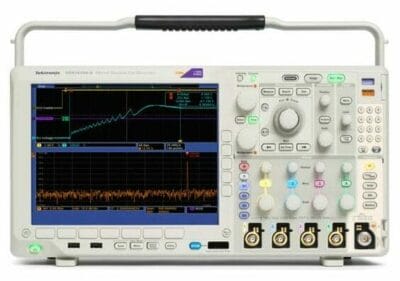

The Tektronix MDO4104-3 Mixed Domain Oscilloscope is a high-performance instrument designed for versatile and comprehensive signal analysis, featuring four 1 GHz analog channels and 16 digital channels. This oscilloscope is equipped with an integrated spectrum analyzer that covers frequencies up to 3 GHz, allowing for simultaneous time-domain and frequency-domain analysis. With a sample rate of 5 GS/s on all analog channels and a record length of 20 Mpoints per channel, it ensures exceptional waveform capture with high detail and accuracy. The MDO4104-3 offers advanced triggering options and built-in protocol analysis for various serial communication standards, enhancing its capability for troubleshooting complex systems. Its large 10.4-inch XGA display provides a clear and intuitive user interface, while the inclusion of a 50 MHz arbitrary/function generator adds to its versatility. The oscilloscope’s robust connectivity options, including USB, LAN, and optional GPIB, facilitate seamless data transfer and remote operation. With its high waveform capture rate, extensive signal processing features, and precise measurement capabilities, the MDO4104-3 is an indispensable tool for engineers and technicians in fields such as electronics, telecommunications, and RF engineering.
Specifications
– Tektronix Mdo4104-3 Mixed Domain Oscilloscope
– (4) 1 Ghz Analog Channels
– (16) Digital Channels
– Digital Bandwidth: 1 GHz
– Maximum Real-Time Sample Rate: 5 GS/s
– Maximum Record Length: 20 Mpts
– Vertical Resolution: 8 bits
– Display: 12.1-inch WXGA color TFT LCD
– Waveform Capture Rate: > 280,000 wfms/s
– Input Coupling: DC, AC, GND
– Trigger Types: Edge, Pulse Width, Runt, Timeout, Window, Logic, Setup/Hold, Rise/Fall Time, Sequence, Video
– Input Impedance: 1 MΩ || 15 pF
– Maximum Input Voltage: 300 Vrms CAT II
– Timebase Range: 500 ps/div – 2000 s/div
– Connectivity: USB 2.0, LAN, GPIB, VGA, HDMI, auxiliary display port
– Built-in Spectrum Analyzer: Frequency Range: 9 kHz – 3 GHz, DANL: -155 dBm/Hz
– Built-in Arbitrary/Function Generator: Frequency Range: 1 µHz – 25 MHz
– Power Supply: 100 – 240 VAC, 50/60 Hz
– Dimensions: 429 mm x 224 mm x 162 mm (W x H x D)
– Weight: 7.7 kg
