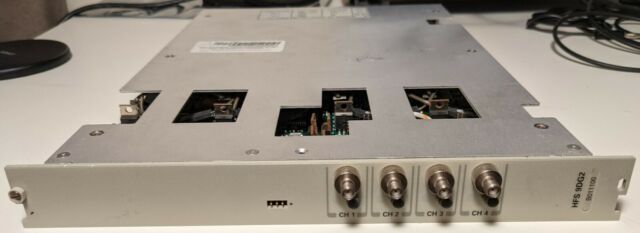

Tektronix HFS9DG2 Pulse/Data Generators
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Tektronix HFS9DG2 Pulse/Data Generators are high-performance instruments designed for generating precise and accurate electrical signals. These generators offer a wide range of capabilities, making them suitable for a variety of applications such as testing digital circuits, communication systems, and semiconductor devices. With their advanced features, including adjustable pulse width, amplitude, and repetition rate, users can easily simulate real-world scenarios and evaluate the performance of their devices. The HFS9DG2 generators also provide multiple output channels, allowing for simultaneous generation of different signal types. Additionally, these instruments offer excellent signal integrity, low jitter, and fast transition times, ensuring reliable and consistent signal generation. Overall, the Tektronix HFS9DG2 Pulse/Data Generators are highly versatile tools that enable engineers and researchers to perform accurate and comprehensive testing in their respective fields.
Specifications
– Model: HFS9DG2
– Brand: Tektronix
– Type: Pulse/Data Generator
– Number of Channels: 2
– Maximum Frequency: 9 GHz
– Output Amplitude Range: -2 V to +2 V
– Rise/Fall Time: < 40 ps
– Jitter: < 250 fs rms
– Output Impedance: 50 ohms
– Modulation Types: AM, FM, PM, PWM
– Data Rates: Up to 2.5 Gb/s
– Pattern Length: Up to 32,768 bits
– Memory Depth: Up to 4 Mbits
– Output Connector: SMA
– Power Requirement: 100-120 V or 200-240 V AC, 50/60 Hz
– Dimensions: 426 mm x 88 mm x 380 mm
– Weight: 5.9 kg (13 lb)
Tektronix HFS9DG2 is also available with the following specs and model:
- Data Time Generator Card
