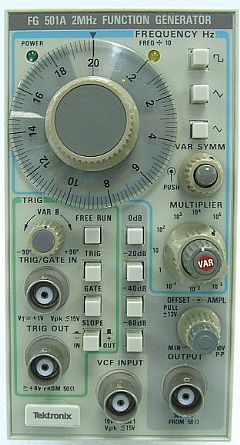

Tektronix FG501A Function/Arbitrary Waveform Generators
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Tektronix FG501A Function/Arbitrary Waveform Generator is a versatile and reliable instrument used in various applications such as research, development, and testing. With its advanced features and capabilities, it allows users to generate a wide range of precise waveforms, including sine, square, triangle, and arbitrary waveforms. The FG501A offers high accuracy and stability, ensuring that the output signals are consistent and reliable. Its intuitive user interface makes it easy to operate, and it also provides various connectivity options for seamless integration into different setups. Whether it’s for educational purposes or professional use, the Tektronix FG501A Function/Arbitrary Waveform Generator is a dependable tool that delivers accurate and customizable waveforms to meet the needs of any project or experiment.
Specifications
– Model: Tektronix FG501A Function/Arbitrary Waveform Generator
– Frequency Range: 0.1 Hz to 11 MHz
– Output Waveforms: Sine, Square, Triangle, Ramp, Pulse, and Arbitrary
– Amplitude Range: 10 mVpp to 20 Vpp (depending on frequency)
– Amplitude Accuracy: ±5% of setting + 2 mVpp
– Frequency Accuracy: ±0.005% of setting + 0.005 Hz
– Resolution: 1 µHz
– Distortion: < 1% (sine wave)
– Arbitrary Waveforms: 12-bit vertical resolution, 4k points waveform memory
– Output Impedance: 50 Ω
– Modulation: AM, FM, PM, FSK, and Sweep
– External Trigger Input: TTL compatible
– Display: 8-digit LED display for frequency and amplitude values
– Power Requirements: 100-120 V or 200-240 V AC, 50/60 Hz
– Dimensions: 214 mm (W) x 134 mm (H) x 315 mm (D)
– Weight: 4.5 kg
