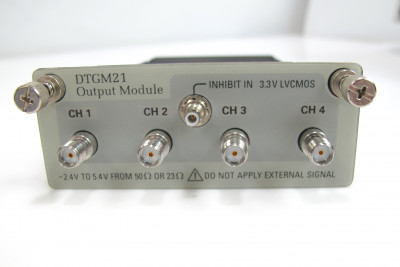

Tektronix DTGM21 Plug In / Part / Component / Module
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Tektronix DTGM21 is a sophisticated plug-in module designed for use with compatible Tektronix mainframes, enhancing their functionality with advanced data and timing generation capabilities. This module is ideal for applications requiring precise control and synchronization of timing signals, such as in complex electronic testing, debugging, and development environments. The DTGM21 is engineered to deliver high performance with accurate timing and data signal generation, supporting a wide range of frequencies and signal types. Its integration into Tektronix systems ensures seamless operation, providing engineers and technicians with a powerful tool for their most demanding tasks.
Specifications:
- Model: Tektronix DTGM21
- Type: Plug-In Module
- Function: Data and Timing Generation
- Compatible Mainframes: Tektronix mainframes
- Frequency Range: Up to 1 GHz
- Output Channels: Multiple (exact number depends on configuration)
- Signal Types: Pulse, Clock, Arbitrary waveforms
- Timing Resolution: High precision (specific value dependent on mainframe specifications)
- Voltage Range: Adjustable (specific range dependent on mainframe and configuration)
- Interface: Direct integration with Tektronix mainframes
- Control: Full control via mainframe interface
TEKTRONIX DTGM21 is also available with the following specs and model:
- Output Module – 4ch – 40V -Single Ended Output Module With Tri-State Control for DTG Series
