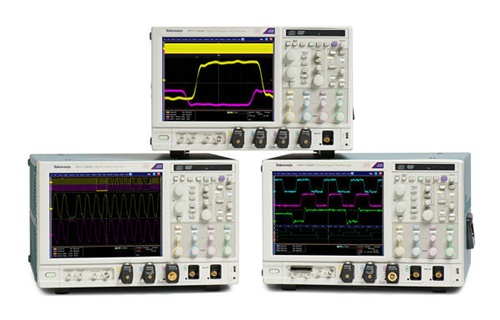

Tektronix Dsa71254C 12.5 Ghz Digital Serial Analyzer; 4 Analog Channels
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Tektronix DSA71254C is a high-performance digital serial analyzer designed for advanced signal analysis and debugging. With a bandwidth of 12.5 GHz, it offers exceptional signal fidelity and accuracy. This analyzer is equipped with four analog channels, allowing for simultaneous measurements of multiple signals. The four channels enable precise and comprehensive analysis, making it ideal for a wide range of applications, including high-speed digital design, embedded systems debugging, and telecommunications testing. The DSA71254C provides real-time acquisition and extensive analysis capabilities, enabling users to capture and analyze complex digital signals with ease. With its advanced features and outstanding performance, the Tektronix DSA71254C is a reliable tool for engineers and technicians seeking accurate and efficient signal analysis solutions.
Specifications
– Bandwidth: 12.5 GHz
– Number of analog channels: 4
– Sample rate: 100 GS/s
– Memory depth: 250 Mpts
– Input voltage range: ± 1 V
– Input impedance: 50 Ω
– Rise time: < 28 ps
– Vertical resolution: 12 bits
– Timebase range: 50 ps/div to 1000 s/div
– Trigger modes: edge, width, pattern, sequence, setup/hold, runt, slew rate, serial packet, glitch, state, window, violation
– Serial protocol support: I2C, SPI, RS-232, RS-422/485, USB, Ethernet, HDMI, MIPI, PCIe, SATA, SAS, DDR2/3/4, Fibre Channel, etc.
– Display: 15.4-inch touchscreen with 1920 x 1200 resolution
– Connectivity: USB 3.0, LAN, GPIB, HDMI, DisplayPort, VGA
