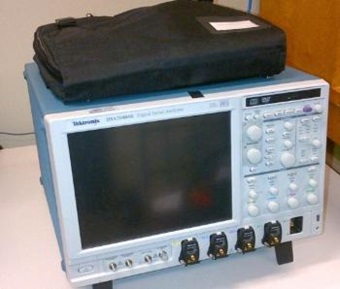

Tektronix Dsa70604B 6 Ghz, 4 Ch, 25 Gs/S Oscilloscope
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Tektronix Dsa70604B is a high-performance oscilloscope that offers impressive specifications and capabilities for engineers and researchers. With a bandwidth of 6 GHz and four channels, it allows for precise and accurate measurements of complex waveforms. The oscilloscope’s 25 Gs/S (giga-samples per second) sampling rate ensures that it can capture fast signals with excellent fidelity. This makes it suitable for a wide range of applications, including high-speed digital design, telecommunications, and RF and microwave testing. Additionally, the Dsa70604B is equipped with advanced triggering and analysis features, enabling users to quickly identify and troubleshoot signal anomalies. Overall, the Tektronix Dsa70604B is a powerful tool that provides professionals with the capabilities needed to tackle complex signal analysis tasks efficiently.
Specifications
– Model: Tektronix DSA70604B
– Bandwidth: 6 GHz
– Channels: 4
– Sampling Rate: 25 Gs/s
– Maximum Record Length: 250 Mpts per Channel
– Vertical Resolution: 8 bits
– Rise Time: < 55 ps
– Input Impedance: 50 Ω // 1 MΩ
– Input Coupling: AC, DC, GND
– Trigger Types: Edge, Glitch, Runt, Width, Pattern, Video, I2C, SPI, UART, CAN, LIN, FlexRay, USB
– Display: 15-inch color TFT-LCD
– Display Resolution: 1024 x 768 pixels
– Interfaces: USB, LAN, GPIB (optional)
– Power Supply: 100-240 VAC, 50/60 Hz
– Dimensions: 427 mm x 179 mm x 428 mm
– Weight: 8.6 kg
