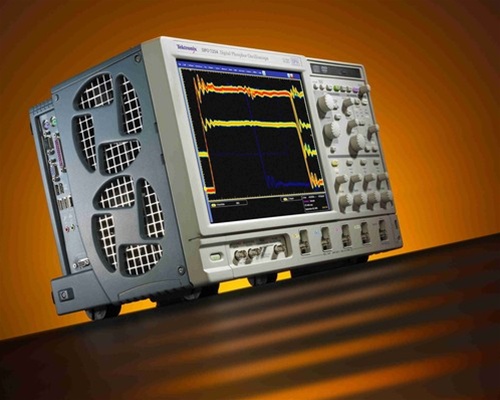

Tektronix Dpo7254C 2.5 Ghz Digital Phosphor Oscilloscope
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Tektronix DPO7254C 2.5 GHz Digital Phosphor Oscilloscope is a high-performance instrument used for analyzing and troubleshooting electronic signals. With a bandwidth of 2.5 GHz, it offers excellent signal fidelity and accuracy, making it ideal for demanding applications in industries such as telecommunications, aerospace, and research laboratories. The Digital Phosphor technology provides a fast waveform capture rate, allowing users to capture and analyze complex waveforms with ease. The large display screen and intuitive user interface make it easy to navigate and interpret the captured signals. Additionally, the DPO7254C offers advanced features like automated measurements, protocol analysis, and serial bus decoding, enhancing efficiency and productivity in signal analysis tasks. Overall, the Tektronix DPO7254C 2.5 GHz Digital Phosphor Oscilloscope is a reliable and versatile tool for engineers and technicians working on high-frequency electronic systems.
Specifications
– Bandwidth: 2.5 GHz
– Sample rate: 40 GS/s
– Record length: 250 Mpoints
– Channels: 4
– Vertical resolution: 8 bits
– Rise time: < 140 ps
– Display: 15.4-inch color touchscreen
– Serial protocol analysis: I2C, SPI, UART/RS-232, CAN, LIN, FlexRay, MIL-STD-1553
– Math functions: FFT, integration, differentiation, statistics, advanced waveform math
– Trigger types: edge, pulse width, runt, setup/hold, video, logic, pattern, sequence, state, parallel
– Connectivity: USB, LAN, GPIB (optional)
– Power supply: 100-240 VAC, 50/60 Hz
– Dimensions: 426 mm x 223 mm x 132 mm
– Weight: 6.5 kg
