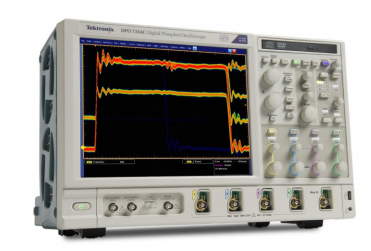

Tektronix Dpo7104C 1 Ghz Digital Phosphor Oscilloscope
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Tektronix DPO7104C is a state-of-the-art digital phosphor oscilloscope with a frequency bandwidth of 1 GHz. This oscilloscope is designed to provide precise and accurate measurements, making it an essential tool for engineers and researchers working in various fields. With its advanced digital phosphor technology, it captures and displays waveforms in great detail, allowing users to analyze and troubleshoot electronic signals with ease. The DPO7104C also offers a large display screen and a user-friendly interface, ensuring convenient operation and quick data interpretation. Its high bandwidth and advanced features make it an ideal choice for professionals seeking an oscilloscope that delivers exceptional performance and reliability.
Specifications
– Bandwidth: 1 GHz
– Channels: 4
– Sample rate: Up to 20 GS/s
– Record length: Up to 500 Mpoints
– Vertical resolution: 8 bits
– Rise time: ≤ 350 ps
– Input impedance: 1 MΩ || 13 pF
– Maximum input voltage: 5 Vrms
– Time base range: 500 fs – 1000 s/div
– Trigger types: Edge, Pulse Width, Runt, Timeout, Pattern, Video, and Serial
– Display: 10.4-inch color TFT LCD
– Connectivity: USB, Ethernet, GPIB, and VGA
– Power: 100-240 VAC, 50/60 Hz
– Weight: 13.6 kg (30 lbs)
– Dimensions: 424 mm × 264 mm × 150 mm (16.7 in × 10.4 in × 5.9 in)
