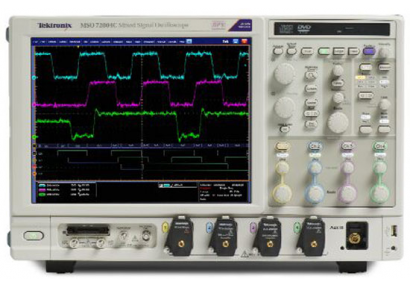

Tektronix Dpo70804C 8 Ghz Digital Phosphor Oscilloscope; 4 Channels (Analog)
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Tektronix Dpo70804C is an advanced digital phosphor oscilloscope that offers exceptional performance and functionality. With a bandwidth of 8 GHz, it ensures accurate and reliable signal measurements for high-speed applications. Equipped with 4 analog channels, it allows for simultaneous monitoring and analysis of multiple signals. The digital phosphor technology provides a vivid display that enables users to easily detect and analyze complex waveform events. This oscilloscope offers a variety of advanced features and tools, including advanced triggering options, waveform math functions, and extensive analysis capabilities. It is a reliable and powerful instrument that is widely used in research labs, engineering, and other fields that require precise signal analysis.
Specifications
– Bandwidth: 8 GHz
– Sample Rate: 25 GS/s
– Record Length: Up to 500 Mpts
– Channels: 4 analog channels
– Vertical Resolution: 8 bits
– Input Impedance: 50 Ohms
– Maximum Input Voltage: 5 V
– Rise Time: < 44 ps
– Display: 15-inch color touch screen
– Triggering: Edge, Pulse, Runt, Timeout, Window, Setup and Hold, Pattern, State, Delay, and Video
– Probing: TekVPI probe interface
– Connectivity: USB, LAN, GPIB, HDMI, and VGA
– Power: 100-240 VAC, 50/60 Hz
– Dimensions (W x H x D): 424 mm x 222 mm x 495 mm
– Weight: 12.5 kg
