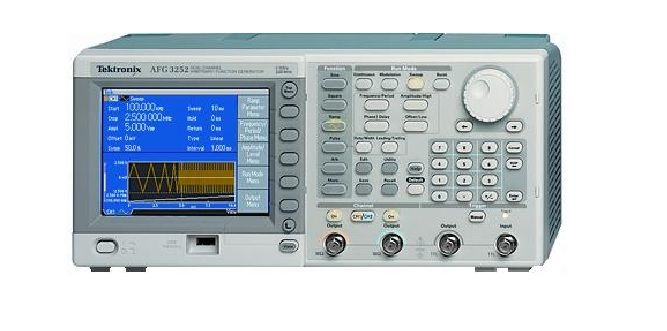

Tektronix AFG3252 Function/Arbitrary Waveform Generators
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Tektronix AFG3252 Function/Arbitrary Waveform Generators are highly versatile and reliable instruments used in a variety of applications. These waveform generators offer a wide range of functionalities, enabling users to generate and output various types of waveforms with precision and accuracy. With a maximum output frequency of 240 MHz, these generators are capable of producing complex signals for testing and calibration purposes. The AFG3252 models feature a large color display and an intuitive user interface, making it easy for users to set up and control the instrument. Additionally, they offer advanced signal generation capabilities, including the ability to create and output arbitrary waveforms, making them ideal for research, development, and production environments. With their exceptional performance, flexibility, and ease of use, the Tektronix AFG3252 Function/Arbitrary Waveform Generators are a reliable choice for engineers and scientists seeking high-quality waveform generation solutions.
Specifications
– 240 MHz sine waveforms, 240 MHz pulse waveforms, and 120 MHz arbitrary waveforms
– 16-bit resolution
– 1 MS/s sample rate
– 14 standard waveforms including sine, square, ramp, pulse, and noise
– 4 user-defined arbitrary waveforms
– 10 Vpp output amplitude into 50 Ω load
– 14-bit amplitude resolution
– 1 µHz frequency resolution
– 5.6-inch color TFT display
– USB, GPIB, and LAN connectivity options
– Waveform Manager Plus software for waveform creation and editing
– ArbExpress software for waveform creation and editing
– Front panel USB port for waveform storage and recall
– 10 ns rise/fall time
– Advanced modulation capabilities including AM, FM, PM, FSK, PWM, and Sweep
– 1 ppm frequency accuracy
– 100 µHz to 240 MHz frequency range
Tektronix AFG3252 is also available with the following specs and model:
- Function Generator – 240 MHz Chs 2
