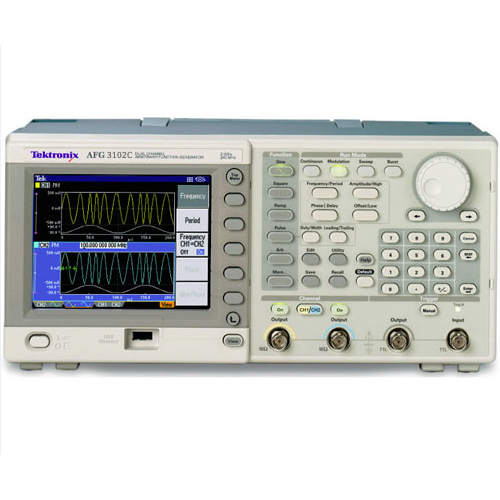

Tektronix AFG3102C Signal Generator
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Tektronix Afg3102C Signal Generator is a high-performance and versatile instrument used for generating accurate and precise signals in various applications. With its advanced features and capabilities, it allows engineers and researchers to generate signals with a frequency range from 1 µHz to 240 MHz, making it suitable for a wide range of testing and measurement needs. The Afg3102C offers exceptional signal quality, low harmonic distortion, and high signal purity, ensuring reliable and accurate results. It provides various modulation options, such as AM, FM, PM, FSK, and PWM, allowing users to simulate real-world scenarios and test different devices and systems. Its intuitive user interface and large color display make it easy to navigate and configure settings, while its multiple connectivity options enable seamless integration with other instruments and systems. Overall, the Tektronix Afg3102C Signal Generator is a powerful tool that provides precise signal generation capabilities for a diverse range of applications.
Specifications
– Frequency range: 1 µHz to 100 MHz
– Output amplitude range: 1 mVpp to 10 Vpp
– Output impedance: 50 ohms
– Waveform types: Sine, square, pulse, ramp, noise, arbitrary, and DC
– Arbitrary waveform memory: 128 MSamples per channel
– Frequency resolution: 1 µHz
– Amplitude resolution: 1 mVpp
– Harmonic distortion: -50 dBc typical at 10 kHz
– Non-harmonic spurious: -70 dBc typical at 10 kHz
– Modulation types: AM, FM, PM, FSK, ASK, PSK, PWM, and arbitrary
– Modulation bandwidth: 20 kHz
– Sweep modes: Linear, logarithmic, and manual
– External modulation inputs: AM, FM, and PM
– USB and LAN interfaces for remote control and programming
– 8-inch color TFT display for easy operation and waveform visualization
Tektronix Afg3102C is also available with the following specs and model:
- Arbitrary Function Generator Output Freq. 100 MHz 2 – 16k 1 GS/s GreaterThan16k – 128k 250 MS/s Analog Chs 2
