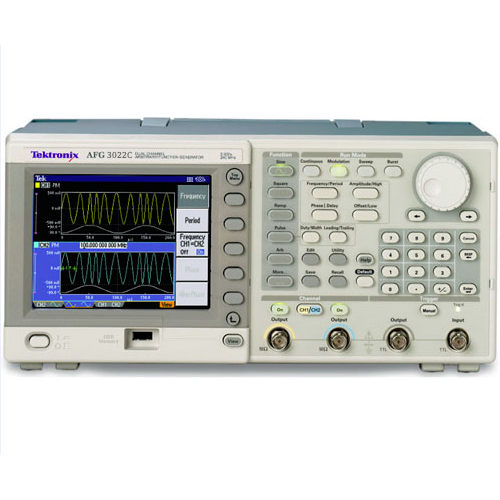

Tektronix Afg3022C Signal Generator
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Tektronix Afg3022C Signal Generator is a highly advanced and versatile instrument used in the field of electronics. It is designed to generate precise and accurate electronic signals for a wide range of applications. With its dual-channel capability, it allows for the simultaneous generation of two signals with different characteristics. The Afg3022C offers a frequency range of up to 25 MHz, ensuring compatibility with a variety of devices and systems. It also features a large and intuitive display, enabling users to easily monitor and adjust signal parameters. This signal generator is known for its exceptional signal quality, low distortion, and fast rise/fall times, making it an ideal choice for research, development, and testing purposes. Whether it is for educational purposes or professional use, the Tektronix Afg3022C Signal Generator is a reliable and efficient tool that meets the demands of modern electronics.
Specifications
– Model: Afg3022C
– Frequency Range: 1µHz to 25MHz
– Output Channels: 2
– Waveform Types: Sine, Square, Pulse, Ramp, Triangle, Noise, DC, Arbitrary
– Waveform Length: 16,000 points
– Sampling Rate: 250MS/s
– Amplitude Range: 1mVpp to 10Vpp
– Amplitude Resolution: 1mVpp
– Output Impedance: 50Ω
– Phase Offset Range: -360° to +360°
– Modulation Types: AM, FM, PM, FSK, PWM
– Modulation Frequency Range: DC to 100kHz
– External Modulation Input: BNC, 10MHz max.
– Sweep Modes: Linear, Logarithmic, Step
– Sweep Time Range: 1µs to 500s
– Marker Function: Frequency, Amplitude, Duty Cycle Measurements
– Display: 4.3-inch color LCD
– Interfaces: USB, GPIB, LAN
– Power Supply: 100-240V AC, 50/60Hz
– Dimensions: 213mm × 88mm × 330mm
– Weight: 2.5kg
Tektronix Afg3022C is also available with the following specs and model:
- Arbitrary Function Generator Output Freq. 25 MHz 2 – 128k 250 MS/s Analog Chs 2
