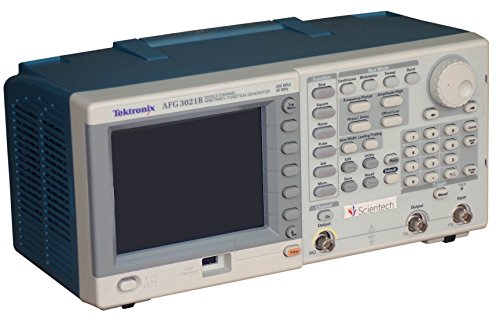

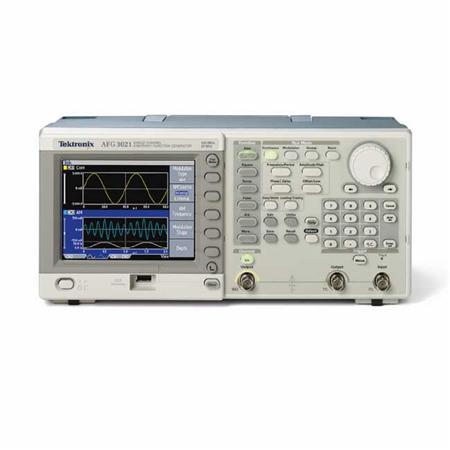

Tektronix AFG3021B Function/Arbitrary Waveform Generators
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Tektronix AFG3021B Function/Arbitrary Waveform Generator is a high-performance instrument designed for generating precise and complex waveforms for a wide range of applications. With its advanced features and capabilities, this waveform generator offers exceptional signal integrity and accuracy, making it an ideal choice for research and development, testing, and educational purposes. It provides users with a broad selection of standard waveforms, including sine, square, ramp, pulse, and noise, as well as the ability to create custom arbitrary waveforms with up to 16 million points. The AFG3021B also offers various modulation options, such as AM, FM, and PM, allowing for the creation of more sophisticated signals. Its intuitive user interface and large color display make it easy to configure and control the generator, while its versatile connectivity options, including USB and LAN interfaces, enable seamless integration into existing test setups. Overall, the Tektronix AFG3021B Function/Arbitrary Waveform Generator offers exceptional performance and versatility, making it an essential tool for any laboratory or engineering environment.
Specifications
– 25 MHz sine waveforms
– 10 MHz square waveforms
– 5 MHz pulse waveforms
– 256 kS waveform memory per channel
– 14-bit vertical resolution
– 1 μHz frequency resolution
– 1 mVpp to 10 Vpp amplitude range
– 1 μs rise/fall time for square waveforms
– 10 ns pulse width resolution
– 200 MS/s sample rate
– Front panel USB host port for waveform storage
– RS-232 and GPIB interfaces for remote control
– 3.5-inch color TFT display
– Sweep and burst modes
– Arbitrary waveform editing software included
– 100 to 240 VAC power supply voltage range
– 50/60 Hz power supply frequency range
Tektronix AFG3021B is also available with the following specs and model:
- Arbitrary Function Generator 25 MHz 1Ch
