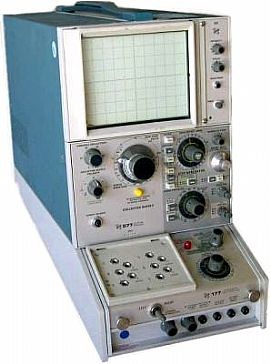

Tektronix 577D2 Curve Tracers
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Tektronix 577D2 Curve Tracers are highly effective and versatile instruments employed in the testing and analysis of electronics. These curve tracers provide precise measurement capabilities for a wide array of electronic components, such as diodes, transistors, and integrated circuits. With their advanced features and user-friendly interface, engineers and technicians can quickly and accurately evaluate different parameters of electronic devices, including voltage, current, and gain. Additionally, the curve tracers are equipped with various display modes and data analysis tools, allowing users to visualize and interpret the characteristics of components and circuits. In summary, the Tektronix 577D2 Curve Tracers are dependable tools that enhance efficiency and productivity in electronic testing and troubleshooting procedures.
Specifications
– Model: Tektronix 577D2
– Type: Curve Tracer
– Display: Built-in CRT display
– Test Current Range: 1μA to 100A
– Test Voltage Range: 5mV to 2000V
– Test Frequency Range: DC to 100kHz
– Maximum Power Dissipation: 1500W
– Maximum Voltage Protection: ±3000V
– Maximum Current Protection: ±100A
– Measurement Accuracy: ±1% of full scale
– Measurement Resolution: 0.1%
– Source Delay Range: 0 to 9999ms
– Source Delay Resolution: 1ms
– Test Fixture: Compatible with various test fixtures and adapters
– Communication Interface: RS-232, GPIB (optional)
– Power Requirements: 100-120V or 200-240V AC, 50/60Hz
– Dimensions: 432mm x 267mm x 508mm
– Weight: 24.5kg
