Tektronix 577D1 Curve Tracers
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description

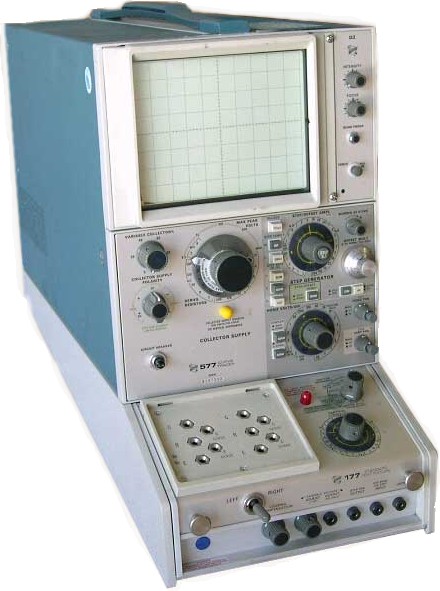

The Tektronix 577D1 Curve Tracer is an advanced electronics testing tool used to analyze and understand semiconductor devices like transistors, diodes, and integrated circuits. It has a wide range of features that make it highly effective for engineers and technicians. Its fast sampling rate allows for accurate measurement and display of voltage-current characteristics, providing a visual representation of how electronic components behave in different conditions. Moreover, the 577D1 offers sophisticated curve analysis and parameter extraction capabilities, allowing users to determine crucial device parameters such as threshold voltage, leakage current, and breakdown voltage. Overall, the Tektronix 577D1 Curve Tracer is a necessary instrument for testing and characterizing semiconductor devices, providing valuable insights into their performance and ensuring the reliability and quality of electronic components.
Specifications
– Model: Tektronix 577D1
– Type: Curve Tracer
– Input Voltage: 120 VAC (±10%)
– Input Frequency: 50/60 Hz (±5%)
– Power Consumption: 200 VA
– Display: 9-inch CRT
– Measurement Range: ±200 V, ±10 A
– Voltage Measurement Accuracy: ±1% of reading ±0.5 V
– Current Measurement Accuracy: ±1% of reading ±10 mA
– Maximum Voltage Sweep Rate: 5 V/µs
– Maximum Current Sweep Rate: 0.5 A/µs
– Measurement Modes: IV, IO, VCE, VBE, VDS, VGS
– Interfaces: GPIB, RS-232
– Dimensions: 13.4 in (W) x 9.9 in (H) x 18.4 in (D)
– Weight: 37.5 lbs
