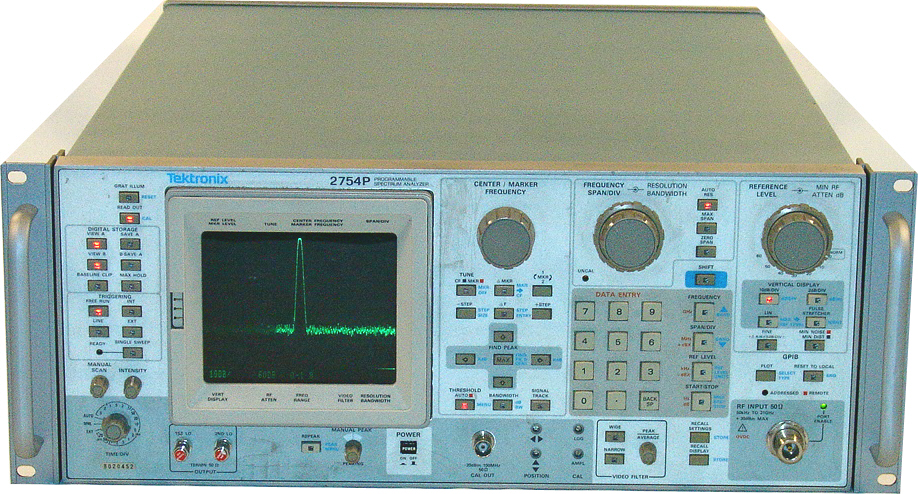

Tektronix 2754P Spectrum Analyzers
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Tektronix 2754P Spectrum Analyzer is an advanced and flexible tool that is used to analyze and measure signals in different applications. It has a wide frequency range and high resolution, allowing for precise and accurate signal analysis. The 2754P has various features and capabilities, including real-time analysis, multiple measurement modes, and advanced triggering options, making it a reliable choice for professionals in fields like telecommunications, aerospace, and defense. Its user-friendly interface and detailed display provide clear information, helping users make informed decisions and effectively troubleshoot issues. In summary, the Tektronix 2754P Spectrum Analyzer is a powerful and essential instrument for signal analysis and measurement requirements.
Specifications
– Frequency range: 9 kHz to 21 GHz
– Resolution bandwidth: 1 Hz to 3 MHz
– Display: 8.4 inch color TFT LCD
– Input impedance: 50 ohms
– Amplitude measurement range: -135 dBm to +30 dBm
– Dynamic range: > 100 dB
– DANL (Displayed Average Noise Level): -135 dBm (typical)
– RBW filters: 1 Hz, 10 Hz, 100 Hz, 1 kHz, 10 kHz, 100 kHz, 1 MHz, 3 MHz
– Phase noise: -80 dBc/Hz at 10 kHz offset (typical)
– Spurious response: -80 dBc (typical)
– Frequency counter: 100 Hz to 1 GHz
– Input connectors: N-type (female)
– Interfaces: USB, LAN, GPIB
– Dimensions: 429 mm x 192 mm x 390 mm
– Weight: 11.3 kg
Tektronix 2754P is also available with the following specs and models:
- Spectrum Analyzer – 10KHz-21GHz
