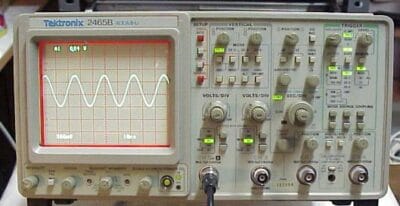

Tektronix 2465B 400 Mhz, 4Ch, Analog Oscilloscope
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Tektronix 2465B is a high-performance analog oscilloscope that is capable of handling a broad range of tasks due to its 400 MHz frequency bandwidth. It is equipped with four channels which enable the simultaneous monitoring and analysis of multiple signals, making it especially beneficial for intricate electronic circuits and systems. This oscilloscope guarantees accurate measurements and dependable analysis by providing exceptional signal fidelity. It also boasts a large and clear display that allows for easy visualization of waveforms and measurements. The Tektronix 2465B is a dependable and adaptable instrument that finds wide applications in various industries such as electronics, telecommunications, and research laboratories.
Specifications
– Bandwidth: 400 MHz
– Channels: 4
– Type: Analog oscilloscope
– Vertical Sensitivity: 2 mV/div to 5 V/div
– Rise Time: ≤ 1.1 ns
– Input Impedance: 1 MΩ // 20 pF
– Maximum Input Voltage: 400 V (DC + peak AC)
– Horizontal Sweep Speeds: 500 ps/div to 5 s/div
– Trigger Modes: Auto, Normal, Single
– Trigger Sensitivity: 0.35 div or 35 mV
– Display: 8×10 cm CRT screen
– Cursors: Time and voltage measurements on screen
– Power Requirements: 100-240 V AC, 50-60 Hz
– Dimensions: 13.3 x 34.8 x 36.2 cm
– Weight: 8.6 kg
