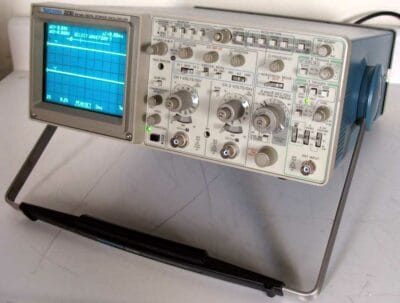

Tektronix 2230 100 Mhz 2 Channel Digital Oscilloscope
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Tektronix 2230 100 Mhz 2 Channel Digital Oscilloscope is a highly effective and adaptable device that is extensively utilized in the electronics field. With its capacity for 100 Mhz bandwidth and two channels, it delivers precise and dependable measurements of waveforms for a wide array of applications. Its digital interface allows for effortless and intuitive control, making it accessible even for inexperienced users. It provides numerous advanced features, such as automated measurements, waveform storage, and mathematical functions, which enable users to easily analyze and interpret complex waveforms. The Tektronix 2230 is a favored option among engineers, technicians, and hobbyists because of its performance, dependability, and affordable price range.
Specifications
– Bandwidth: 100 MHz
– Number of Channels: 2
– Sampling Rate: 500 MS/s
– Vertical Sensitivity: 2 mV/div to 5 V/div
– Horizontal Sweep Speed: 10 ns/div to 5 s/div
– Display: 9-inch CRT color display
– Triggering Modes: Auto, Normal, Single
– Trigger Sources: CH1, CH2, Line, External
– Input Impedance: 1 MOhm ± 2%
– Maximum Input Voltage: 400 V (DC + peak AC)
– Record Length: 1 k samples per channel
– Cursors: Time and Voltage measurement cursors
– Math Functions: Add, Subtract, Multiply, Integrate, Differentiate
– Communication Interfaces: RS-232, GPIB (optional)
– Power Requirements: 100-240 V AC, 50/60 Hz
– Dimensions: 325 mm x 144 mm x 455 mm
– Weight: 5.9 kg
also available with the following specs and models:
- 2230E Oscilloscope – 100MHz – 2ch – 100MSa/s
