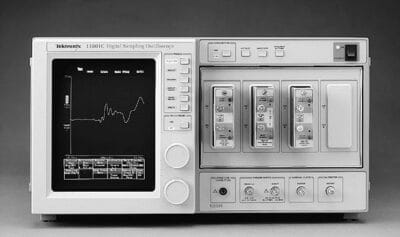

Tektronix 11801C 50 Ghz, Modular Digital Sampling Oscilloscope
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Tektronix 11801C is a high-performance modular digital sampling oscilloscope renowned for its exceptional bandwidth of 50 GHz, making it ideal for capturing and analyzing extremely high-frequency signals with precision. Designed for advanced applications in fields such as telecommunications, research and development, and high-speed digital design, the 11801C provides unparalleled signal fidelity and resolution. Its modular architecture allows for flexible configuration and expansion, enabling users to tailor the oscilloscope to their specific testing requirements. With advanced triggering capabilities and deep memory, the 11801C excels in isolating and examining fast transient events and intricate signal behaviors. The oscilloscope’s intuitive interface and comprehensive analysis tools facilitate detailed signal examination and troubleshooting, ensuring accurate and reliable results. The Tektronix 11801C stands out as a crucial instrument for engineers and researchers who demand the highest level of performance and precision in their signal analysis tasks.
Specifications
– Bandwidth: 50 GHz
– Sample rate: 100 GS/s
– Channels: 2
– Input impedance: 50 ohms
– Vertical resolution: 8 bits
– Time base range: 1 ps/div to 1000 s/div
– Trigger types: Edge, Glitch, Pattern, TV, Pulse, Runt, Window, Timeout
– Input voltage range: ± 3V
– Input coupling: AC, DC, GND
– Max record length: 32 Mpoints
– Display: 10.4″ color touchscreen
– Communication interfaces: USB, LAN, GPIB
– Power supply: 100-240VAC, 50/60 Hz
– Dimensions: 445 mm x 223 mm x 347 mm
– Weight: 11 kg
