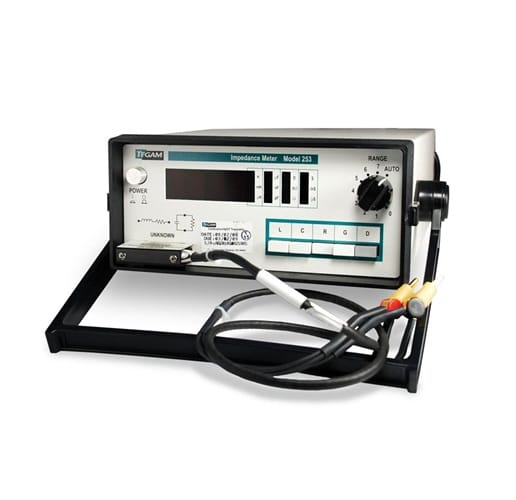

Tegam 253 Impedance Meter
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Tegam 253 Impedance Meter is a highly advanced instrument designed for precise characterization of impedance parameters across a range of frequencies. With its exceptional measurement accuracy and high-resolution display, the Tegam 253 offers excellent performance and value for professionals in research, development, and test applications. It provides reliable measurements of resistance, capacitance, and inductance, as well as advanced parameters such as dissipation factor and quality factor. The Tegam 253 Impedance Meter is a highly advanced instrument that provides exceptional measurement accuracy and a wide range of measurement functionalities. With its multiple measurement modes, broad test frequency range, and high-resolution display, it is suitable for a wide range of applications including components characterization and filter design. Its intuitive user interface and extensive specifications make it a valuable tool for professionals in industries such as telecommunications, aerospace, and research and development
Specifications
– Measurement Range: 1 µΩ to 100 MΩ (resistance), 1 pF to 100 nF (capacitance), 1 nH to 100 mH (inductance)
– Test Frequencies: 1 µHz to 10 MHz
– Measurement Accuracy: ±0.05%
– Measurement Modes: Series or parallel equivalent circuit, transformer ratio and phase, impedance comparator, and network analyzer
– Display: High-resolution color LCD screen for easy reading
– Data Storage: Internal memory for storing measurement data
– Connectivity Options: USB and LAN interfaces for data transfer and control
– Calibration: NIST-traceable calibration certificate included
– Power Supply: AC power adapter or batteries for portable use
– Dimensions: Compact and lightweight design for easy portability
– Weight: Approximately 1.5 kg (3.3 lbs)
