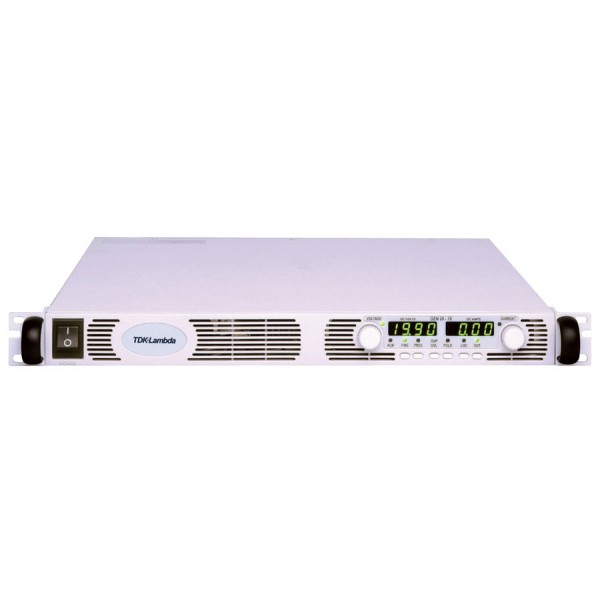

Tdk-Lambda Gen 600-2.6 Gen 600-2.6 600 V, 2.6 A, DC Power Supply
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The TDK-Lambda GEN 600-2.6 is a high-voltage DC power supply that provides up to 600 V and 2.6 A with a maximum power output of 1.56 kW. This power supply is part of the GENESYS™ series, known for its reliability, precision, and compact design, making it ideal for applications such as testing, research, industrial automation, and semiconductor manufacturing. The GEN 600-2.6 features excellent line and load regulation, maintaining a stable output under varying input conditions or load changes. With low ripple and noise, it ensures a clean power supply suitable for sensitive electronic equipment. The unit includes multiple protection mechanisms like overvoltage, overcurrent, overpower, and overtemperature safeguards, enhancing operational safety and longevity. It comes with standard digital interfaces, including RS-232/RS-485, and offers optional LAN, GPIB, or USB for seamless integration into automated test systems. Its compact 1U rack-mountable design and efficient cooling system make it an excellent choice for environments with limited space or high power density requirements, operating effectively in temperatures up to 50°C.
Specifications
- Output Voltage: 0 to 600 V DC
- Output Current: 0 to 2.6 A
- Output Power: 1,560 W
- Input Voltage: 170-265 V AC (Single-phase), 47-63 Hz
- Line Regulation: ≤ 0.01% of full scale
- Load Regulation: ≤ 0.01% of full scale
- Ripple and Noise: ≤ 200 mV RMS, ≤ 600 mV peak-to-peak
- Programming Accuracy:
- Voltage: ≤ 0.1% of rated output
- Current: ≤ 0.2% of rated output
- Transient Response Time: ≤ 1 ms (for a 50-100% load change)
- Remote Sense Compensation: Up to 5 V per load lead
- Digital Interface: Standard RS-232/RS-485; optional LAN, GPIB, or USB
- Operating Temperature: 0°C to 50°C (32°F to 122°F)
- Cooling: Forced air with internal fan
- Dimensions: 1U, 19-inch rack mount
- Weight: Approximately 5.9 kg (13 lbs)
- Safety Standards: Meets UL, cUL, CE, and RoHS standards
- Protection Features: Overvoltage, overcurrent, overpower, and overtemperature protection
- Control and Monitoring: Front panel controls with digital display, remote control via standard and optional interfaces
- Efficiency: ≥ 85% (typical)
