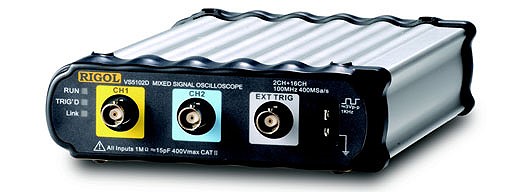

Rigol Vs5042D 40 Mhz, Mixed Signal Oscilloscope – 2+16 Digital Cha
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Rigol VS5042D is a mixed signal oscilloscope that combines the capabilities of both analog and digital signal analysis, making it a powerful tool for complex electronic troubleshooting and development. With a bandwidth of 40 MHz, it supports precise measurement of various signal types. The device features 2 analog channels and 16 digital channels, enabling comprehensive monitoring and debugging of both analog and digital components within a system. Its user-friendly interface and advanced triggering options allow for detailed signal analysis, facilitating the identification of intricate issues. The VS5042D’s integration of analog and digital channels into a single platform enhances its versatility, making it an essential instrument for engineers, technicians, and researchers working in fields such as embedded systems, communications, and automotive electronics. Its compatibility with Rigol’s suite of software tools further expands its functionality, providing robust data analysis and reporting capabilities.
Specifications
– Model: Rigol Vs5042D
– Bandwidth: 40 MHz
– Channels: 2 analog + 16 digital
– Oscilloscope type: Mixed signal
– Digital channels: 16
– Analog channels: 2
– Bandwidth limitation: 40 MHz
– Sampling rate: 500 MSa/s
– Maximum memory depth: 140 Mpts
– Vertical resolution: 8 bits
– Waveform update rate: 110,000 wfm/s
– Trigger types: Edge, Pulse, Video, Slope, Runt, Window, Timeout, Pattern, Duration, Setup/Hold, Nth Edge, Logic, I2C, SPI, UART/RS232, CAN, LIN, FlexRay, MIL-STD-1553, I2S, Manchester, Modbus, DMX512, Parallel
– Display: 9-inch WVGA (800×480) TFT LCD
– Interfaces: USB Host, USB Device, LAN (LXI Core), AUX Output, Pass/Fail, Trigger Out, 10 MHz Reference Clock In
– Dimensions: 337 mm x 157 mm x 138 mm
– Weight: 2.5 kg
