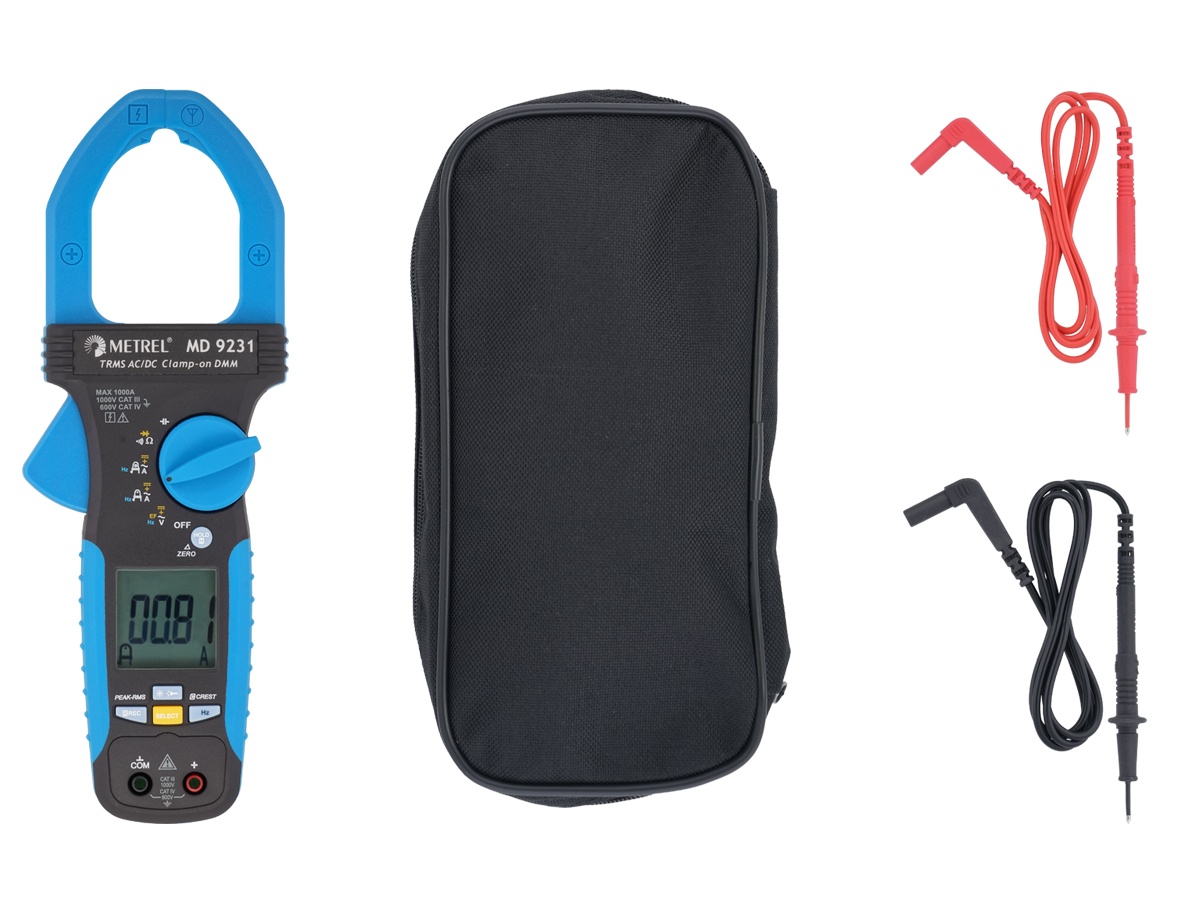

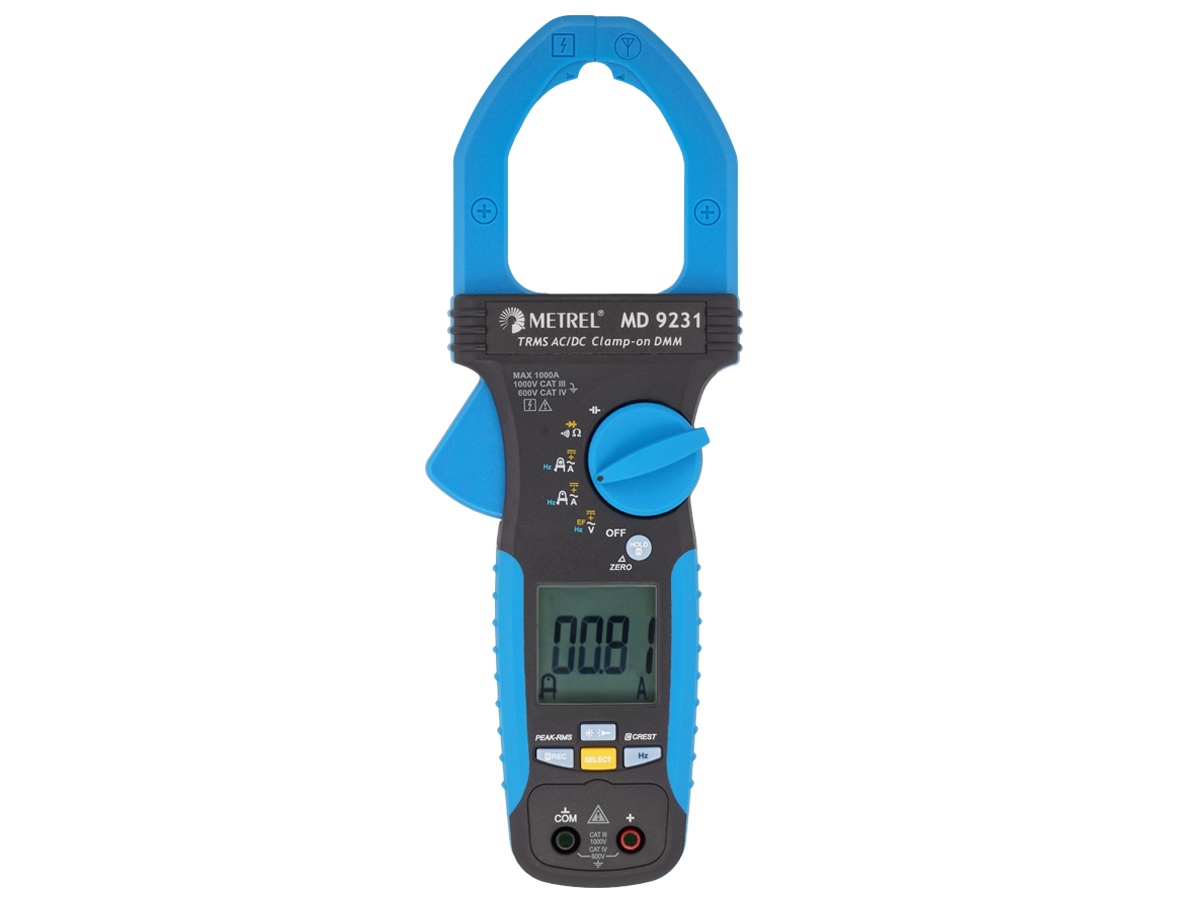

Metrel MD 9231 Clamp Meters
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Metrel MD 9231 Clamp Meter is a top-tier tool engineered for comprehensive electrical testing and diagnostics, ideal for professionals in the electrical field. This advanced clamp meter offers a wide array of measurement capabilities, combining traditional multimeter functions with the convenience of a clamp meter. It features a robust design that allows users to measure both AC and DC currents up to 1000 A without direct contact, making it suitable for a variety of applications from residential to industrial environments. The MD 9231 supports a broad range of measurements including AC/DC voltage, current, resistance, capacitance, frequency, and temperature. It is equipped with True RMS measurement technology to provide accurate readings of complex waveforms and noisy signals. The meter’s high-resolution backlit LCD display ensures clear visibility of measurements, even in low-light conditions. Additionally, the MD 9231 includes advanced features such as data logging, min/max recording, and Bluetooth connectivity for real-time data transfer and remote monitoring. With its high safety ratings of CAT IV 600V and CAT III 1000V, the MD 9231 offers reliable protection in high-voltage applications. Its ergonomic design and user-friendly interface make it an indispensable tool for electrical technicians, engineers, and maintenance professionals.
Specifications
- Model: MD 9231 Clamp Meter
- Measurement Functions: Voltage (AC/DC), Current (AC/DC), Resistance, Capacitance, Frequency, Temperature
- Current Range: Up to 1000 A (AC/DC)
- Voltage Range: 0.1 mV to 1000 V (DC), 0.1 mV to 750 V (AC)
- Resistance Range: 0.1 Ω to 60 MΩ
- Capacitance Range: 1 pF to 100 mF
- Frequency Range: 10 Hz to 10 MHz
- Temperature Measurement: -50°C to 1000°C (-58°F to 1832°F)
- Display: High-resolution backlit LCD with large digits
- True RMS Measurement: Yes
- Data Logging: Yes
- Bluetooth Interface: Yes, for wireless data transfer and remote monitoring
- Data Hold Function: Yes
- Min/Max Hold Function: Yes
- Auto-ranging: Yes, with manual range selection option
- Overload Protection: On all ranges
- Safety Rating: CAT IV 600V, CAT III 1000V
- Power Supply: 9V battery (included)
- Dimensions: Approx. 250 x 100 x 60 mm
- Weight: Approximately 500 grams (including battery)
- Additional Features: Auto power-off, low battery indicator, ergonomic handle, continuity buzzer, wide clamp jaw for large conductors
- Applications: Suitable for detailed electrical diagnostics, maintenance, and troubleshooting across industrial, commercial, and residential environments.
