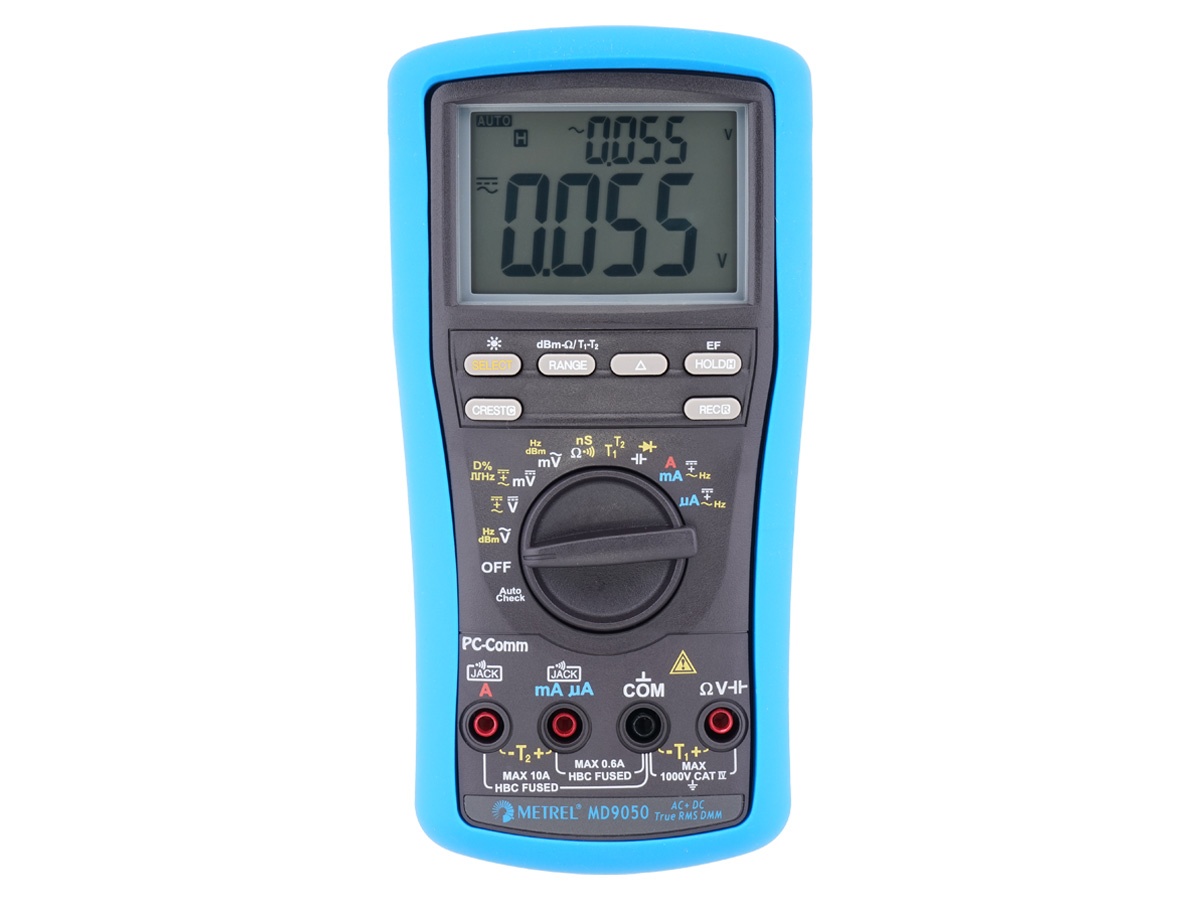

Metrel MD 9050 Digital Multimeter
The MD 9050 ranks among the best multimeters on the market. High resolution and accuracy, 2-line LCD display, fast data acquisition and transfer (via optical interface), CAT IV / 1000 V, TRMS current and voltage measurement, non-contact voltage detection, conductance measurement, auto check function and fast one-handed operation are highlights of the multimeter. The MD 9050 is the ideal choice for demanding measurement tasks in industry, in the laboratories and in everyday repair and maintenance practice.
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Metrel MD 9050 Digital Multimeter is a top-tier, multifunctional instrument engineered for high precision and reliability in the most demanding electrical testing applications. Ideal for professional electricians, engineers, and technicians, this multimeter is built to handle a wide range of measurements, including AC/DC voltage, AC/DC current, resistance, capacitance, frequency, temperature, and more. The MD 9050 stands out with its high-resolution dual display, which combines a 6000-count digital readout with an analog bar graph, providing fast and accurate visual feedback of measurement fluctuations. It incorporates advanced features such as True RMS measurement, which ensures precise readings even in environments with distorted waveforms, and a low pass filter that helps eliminate high-frequency noise for more accurate measurements. The device is designed for rugged use, with a durable casing, overload protection on all ranges, and compliance with high safety standards (CAT IV 600V and CAT III 1000V), ensuring user safety even in high-energy environments. Its ergonomic design, intuitive interface, and additional functionalities like data logging, max/min hold, and a built-in Bluetooth interface for wireless data transfer make the Metrel MD 9050 an indispensable tool for both everyday and specialized electrical diagnostic tasks.
Specifications
- Model: MD 9050 Digital Multimeter
- Measurement Functions: Voltage (AC/DC), Current (AC/DC), Resistance, Capacitance, Frequency, Temperature, Continuity, Diode Test
- Voltage Range: 0.1 mV to 1000 V (DC), 0.1 mV to 750 V (AC)
- Current Range: 0.1 µA to 10 A (AC/DC)
- Resistance Range: 0.1 Ω to 60 MΩ
- Capacitance Range: 1 pF to 100 mF
- Frequency Range: 10 Hz to 10 MHz
- Temperature Measurement: -50°C to 1000°C (-58°F to 1832°F)
- Display: Dual digital display with analog bar graph; 6000 counts backlit LCD
- True RMS Measurement: Yes
- Low Pass Filter: Yes
- Accuracy: Basic accuracy of ±0.2%
- Data Hold Function: Yes
- Max/Min Hold Function: Yes
- Bluetooth Interface: Yes, for wireless data transfer
- Auto-ranging: Yes, with manual override option
- Overload Protection: On all ranges
- Safety Rating: CAT IV 600V, CAT III 1000V
- Power Supply: 9V battery (included)
- Dimensions: Approx. 210 x 96 x 56 mm
- Weight: Approximately 440 grams (including battery)
- Additional Features: Auto power-off, low battery indicator, protective rubber holster, continuity buzzer
- Applications: Suitable for advanced diagnostic work in industrial, commercial, and residential electrical environments, including environments with high electrical noise.
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
