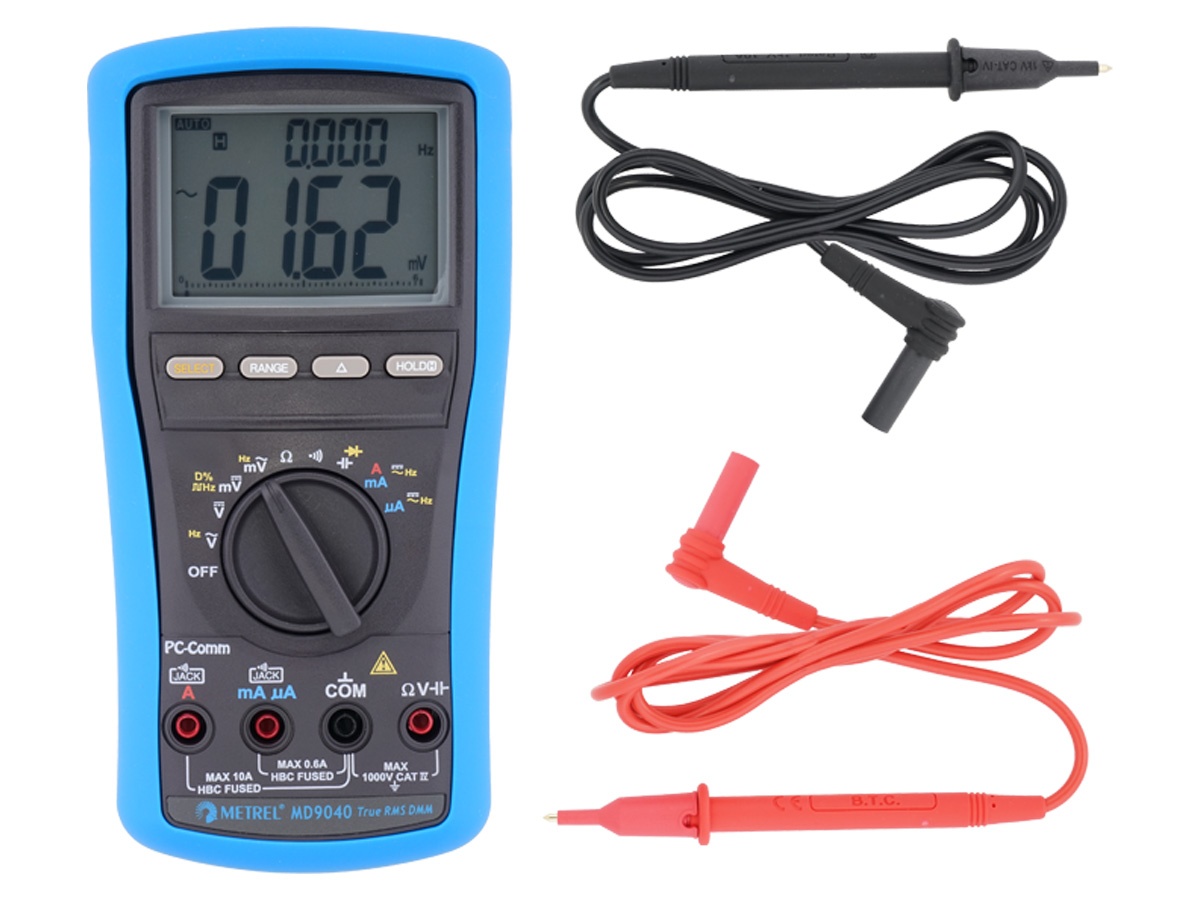

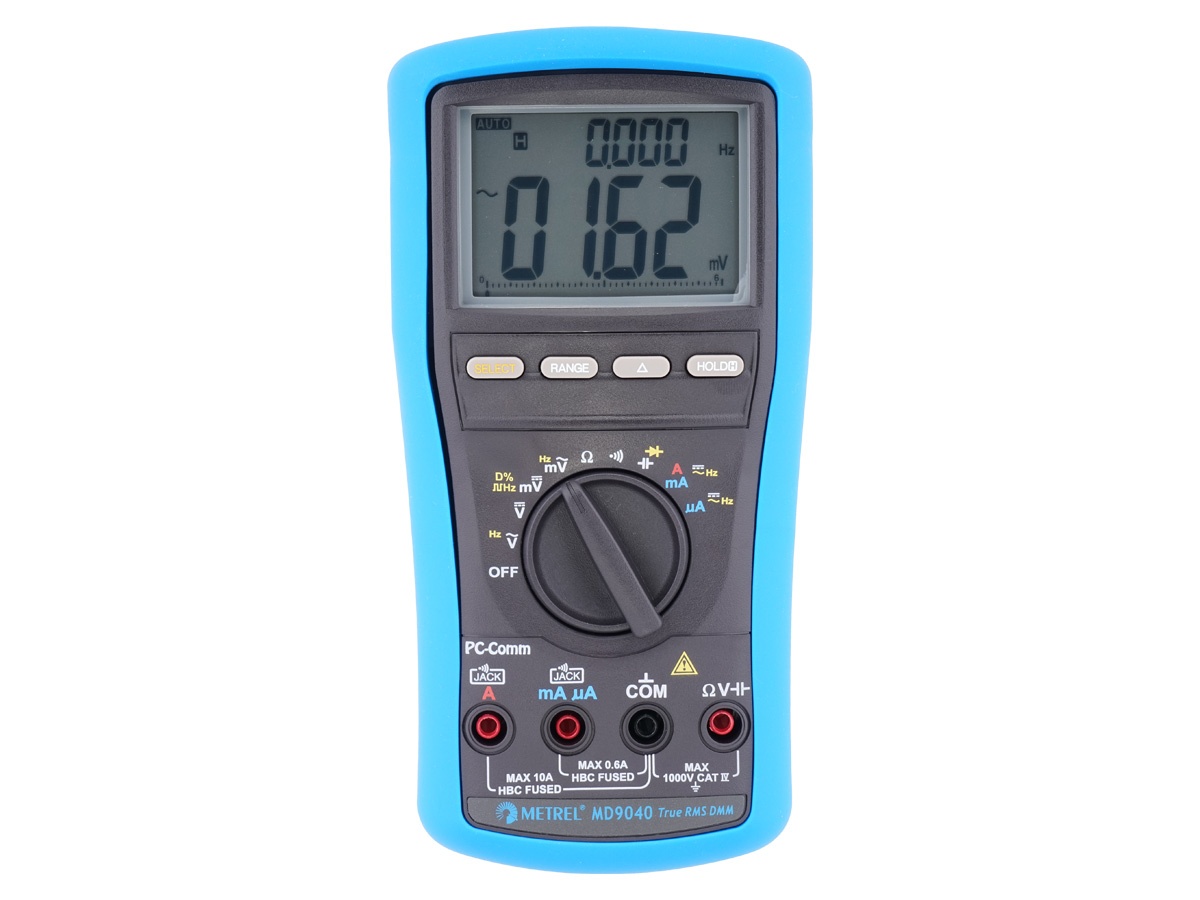

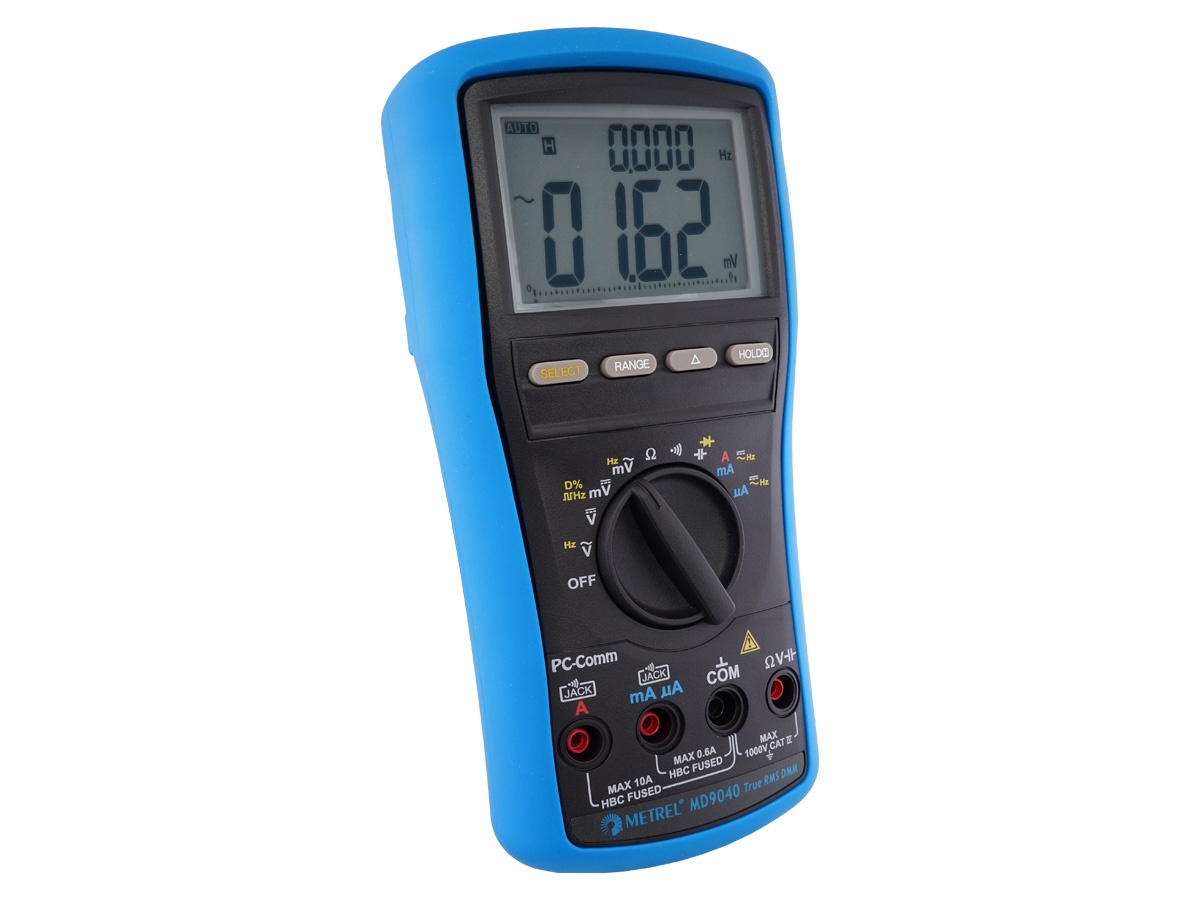

Metrel MD 9040 Digital Multimeter

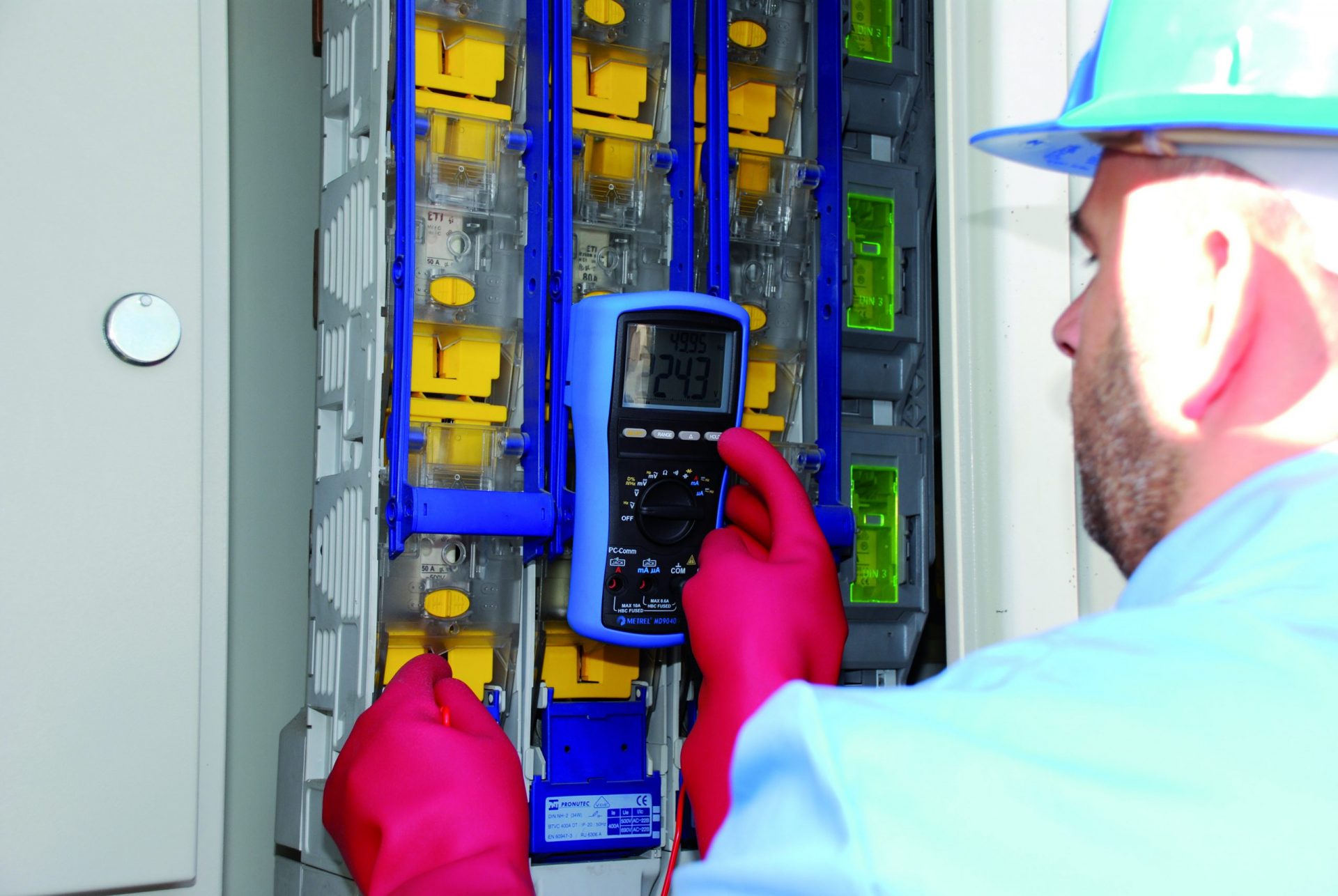

CAT IV / 1000 V overvoltage category and TRMS measurement of AC current and voltage are key features of the MD 9040. That’s why it is particularly suitable for performing measurements on power supply sources in the most demanding applications in the industrial sector. Its high accuracy, 2-line LCD display, diverse measurement functions, fast one-handed operation and outstanding value for money open up a wide range of possible uses.
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Metrel MD 9040 Digital Multimeter is an advanced, high-performance tool designed to meet the diverse needs of professional electricians, technicians, and engineers. This multimeter offers an extensive range of measurement capabilities, including voltage, current, resistance, frequency, capacitance, temperature, and continuity testing, making it a versatile choice for various electrical testing scenarios. With its dual digital display featuring a bar graph and a high-resolution 6000-count backlit LCD, the MD 9040 ensures clear visibility and precise readouts even in low-light environments. The multimeter incorporates an array of user-friendly features, such as auto-ranging, peak hold, data hold, and min/max value recording, enhancing its functionality for both everyday use and complex diagnostics. Built to withstand rigorous industrial conditions, the MD 9040 boasts a robust design with overload protection on all ranges and conforms to stringent safety standards (CAT IV 600V and CAT III 1000V). Its ergonomic design, coupled with an intuitive interface and durable construction, provides exceptional reliability, accuracy, and safety, making it an essential tool for demanding electrical and electronic testing tasks.
Specifications
- Model: MD 9040 Digital Multimeter
- Measurement Functions: Voltage (AC/DC), Current (AC/DC), Resistance, Capacitance, Frequency, Temperature, Continuity, Diode Test
- Voltage Range: 0.1 mV to 1000 V (DC), 0.1 mV to 750 V (AC)
- Current Range: 0.1 µA to 10 A (AC/DC)
- Resistance Range: 0.1 Ω to 40 MΩ
- Capacitance Range: 1 pF to 100 mF
- Frequency Range: 10 Hz to 10 MHz
- Temperature Measurement: -50°C to 1000°C (-58°F to 1832°F)
- Display: Dual digital display with bar graph; 6000 counts backlit LCD
- Accuracy: Basic accuracy of ±0.2%
- Data Hold Function: Yes
- Peak Hold Function: Yes
- Min/Max Value Recording: Yes
- Auto-ranging: Yes, with manual override option
- Overload Protection: On all ranges
- Safety Rating: CAT IV 600V, CAT III 1000V
- Power Supply: 9V battery (included)
- Dimensions: Approx. 200 x 92 x 55 mm
- Weight: Approximately 420 grams (including battery)
- Additional Features: Auto power-off, low battery indicator, protective rubber holster, continuity buzzer
- Applications: Suitable for complex diagnostic work in industrial, commercial, and residential electrical environments.
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
