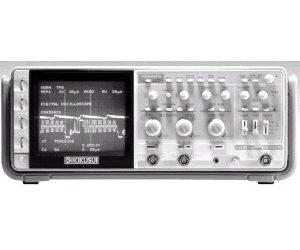

Kikusui Electronics Corp. Cor5541U Digital Oscilloscope
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
Kikusui Electronics Corp. Cor5541U Digital Oscilloscope is a highly advanced and reliable instrument designed for accurate waveform analysis and measurement. With its cutting-edge technology and user-friendly interface, it offers a wide range of features and functions that make it suitable for various applications in the electronics industry. The Cor5541U is equipped with a large high-resolution display that provides clear and precise waveform representations, allowing users to easily analyze and interpret complex signals. Its fast sampling rate and high bandwidth ensure accurate measurements even for high-frequency signals. Additionally, it offers advanced triggering options, multiple input channels, and a variety of measurement parameters, making it a versatile tool for engineers and technicians. Kikusui Electronics Corp. has a reputation for producing high-quality and innovative products, and the Cor5541U Digital Oscilloscope is no exception, providing professionals with a reliable and efficient solution for their waveform analysis needs.
Specifications
– Model: Cor5541U
– Manufacturer: Kikusui Electronics Corp.
– Type: Digital Oscilloscope
– Channels: 4
– Bandwidth: 500 MHz
– Sample Rate: 5 GS/s
– Memory Depth: 250 Mpts
– Vertical Resolution: 8 bits
– Display: 10.1-inch TFT color LCD
– Input Impedance: 1 MΩ ±1%
– Input Coupling: AC, DC, GND
– Trigger Modes: Edge, Pulse, Video, Slope, Pattern, Runt, Interval, Dropout
– Trigger Sensitivity: 0.5 div or 1 div
– Probe Attenuation Factors: 1X, 10X, 100X, 1000X
– Maximum Input Voltage: 400 V (DC + AC peak)
– Interfaces: USB, LAN, GPIB (optional)
– Power Supply: 100-240 VAC, 50/60 Hz
– Dimensions: 350 mm (W) x 180 mm (H) x 150 mm (D)
– Weight: Approximately 3.5 kg
