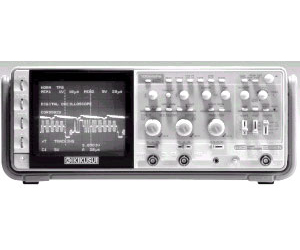

Kikusui Electronics Corp. Cor5521U Digital Oscilloscope
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Kikusui Electronics Corp. Cor5521U Digital Oscilloscope is a highly advanced and reliable instrument that offers exceptional performance in the field of electronic measurement. With its cutting-edge technology and user-friendly interface, it allows engineers and technicians to accurately analyze and observe electric waveforms with precision. The oscilloscope features a large color display that provides clear and detailed waveform representations, making it easier to identify and diagnose any abnormalities or irregularities in the signal. Additionally, the Cor5521U offers a wide frequency range and a high sampling rate, ensuring accurate measurement even in complex and fast-changing waveforms. Its compact design and lightweight make it portable and convenient for fieldwork. Overall, the Kikusui Electronics Corp. Cor5521U Digital Oscilloscope is a top-of-the-line instrument that meets the demands of professionals in the electronics industry, delivering outstanding performance and reliability.
Specifications
– Model: COR5521U
– Manufacturer: Kikusui Electronics Corp.
– Type: Digital Oscilloscope
– Bandwidth: 200 MHz
– Channels: 2
– Sample Rate: 1 GS/s
– Memory Depth: 10 Mpts per channel
– Vertical Resolution: 8 bits
– Display: 8.4-inch color TFT LCD
– Input Impedance: 1 MΩ ± 1%
– Input Coupling: AC, DC, GND
– Trigger Types: Edge, Pulse Width, Runt, Video, Pattern, Continuous time, Dropout, Window, Nth Edge
– Trigger Modes: Auto, Normal, Single
– Waveform Measurements: Vpp, Vrms, Vmax, Vmin, Vtop, Vbase, Vamp, Overshoot, Preshoot, Rise Time, Fall Time, Frequency, Period, Duty Cycle, Delay, Phase, etc.
– Math Functions: Add, Subtract, Multiply, Divide, FFT
– Connectivity: USB, LAN, GPIB (optional)
– Power Supply: 100-240 V AC, 50/60 Hz
– Dimensions: 345 mm (W) x 177 mm (H) x 122 mm (D)
– Weight: 2.5 kg
