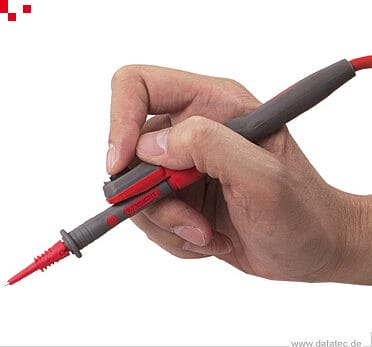

Keysight U5404A Remote Switch Probe
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Keysight U5404A Remote Switch Probe is a highly versatile and efficient tool designed for electronic testing and measurement applications. It features a compact and portable design, making it ideal for both laboratory and field use. The remote switch probe offers a wide frequency range and excellent signal integrity, ensuring accurate and reliable results. With its advanced switching capabilities, it allows for seamless and precise control over multiple test points, enabling efficient testing of complex electronic systems. The Keysight U5404A Remote Switch Probe is a valuable asset for engineers and technicians seeking a reliable and user-friendly solution for their testing needs.
Specifications
– Manufacturer: Keysight Technologies
– Model: U5404A
– Type: Remote Switch Probe
– Compatibility: Compatible with Keysight InfiniiVision Series oscilloscopes
– Input Channels: 4 channels
– Bandwidth: 1.5 GHz
– Input Impedance: 1 MΩ || 15 pF
– Maximum Voltage: ±100 V (DC + AC peak)
– Maximum Input Current: 5 A (DC + AC peak)
– Maximum Common Mode Voltage: ±100 V (DC + AC peak)
– Maximum Differential Mode Voltage: ±100 V (DC + AC peak)
– Maximum Common Mode Rejection Ratio (CMRR): >50 dB at 1 MHz
– Probe Interface: BNC
– Signal Output: 2.54 mm (0.1 in) pitch, 10-pin male header
– Dimensions: 36.1 mm (1.42 in) x 20.0 mm (0.79 in) x 10.9 mm (0.43 in)
– Weight: 9.5 g (0.34 oz)
– Operating Temperature Range: 0°C to 55°C (32°F to 131°F)
– Storage Temperature Range: -20°C to +75°C (-4°F to +167°F)
– Power Requirement: Powered directly from the oscilloscope via probe interface
