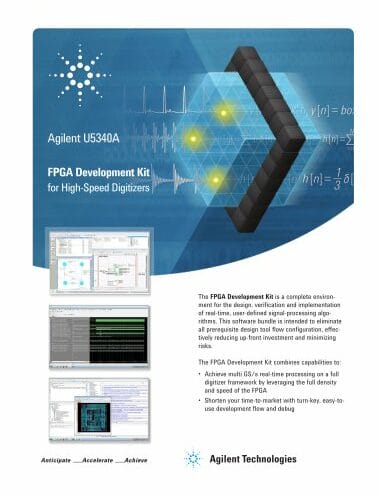

Keysight U5340A Fpga Development Kit For High-Speed Digitizers
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Keysight U5340A FPGA Development Kit for High-Speed Digitizers is a powerful tool designed for engineers and researchers working with high-speed digitizers. This kit combines the versatility of an FPGA board with the advanced capabilities of Keysight’s digitizers, allowing users to develop and implement custom algorithms for real-time signal processing. The kit offers a wide range of features and functions, including high-speed data transfer, multiple input channels, and flexible clocking options. With its user-friendly interface and comprehensive software development kit, the U5340A enables efficient and streamlined development of FPGA-based applications. Whether it’s for signal analysis, data acquisition, or system integration, this development kit provides engineers with the tools they need to achieve accurate and reliable results in their high-speed digitizer projects.
Specifications
– FPGA: Xilinx Virtex-7 XC7VX690T-2FFG1761C with 690,000 logic cells and 12.5 Gb/s transceivers
– Memory: 4 GB DDR3 SDRAM with 800 MHz clock frequency
– Clocking: Onboard 200 MHz and 100 MHz oscillators, SMA connectors for external clock input/output
– Data Capture: Dual-channel 10-bit ADCs with 1.5 GSPS sampling rate and 2.5 GHz analog bandwidth
– Data Output: Dual-channel 14-bit DACs with 2.8 GSPS update rate and 2.5 GHz analog bandwidth
– Connectivity: PCIe Gen2 x8 interface with 4 GB/s maximum data transfer rate
– I/O: 4 SMA coaxial connectors for analog input/output, 4 user-programmable LEDs, 4 user-programmable push buttons, 4 DIP switches
– Power: Single 12V input power supply, onboard power regulators
– Software: Keysight FPGA development environment with example designs and programming libraries
– Dimensions: 9.0 x 6.6 inches (228.6 x 167.6 mm)
– Operating System Compatibility: Windows and Linux
– Development Kit Contents: U5340A FPGA Development Kit, power supply, PCIe cable, documentation
