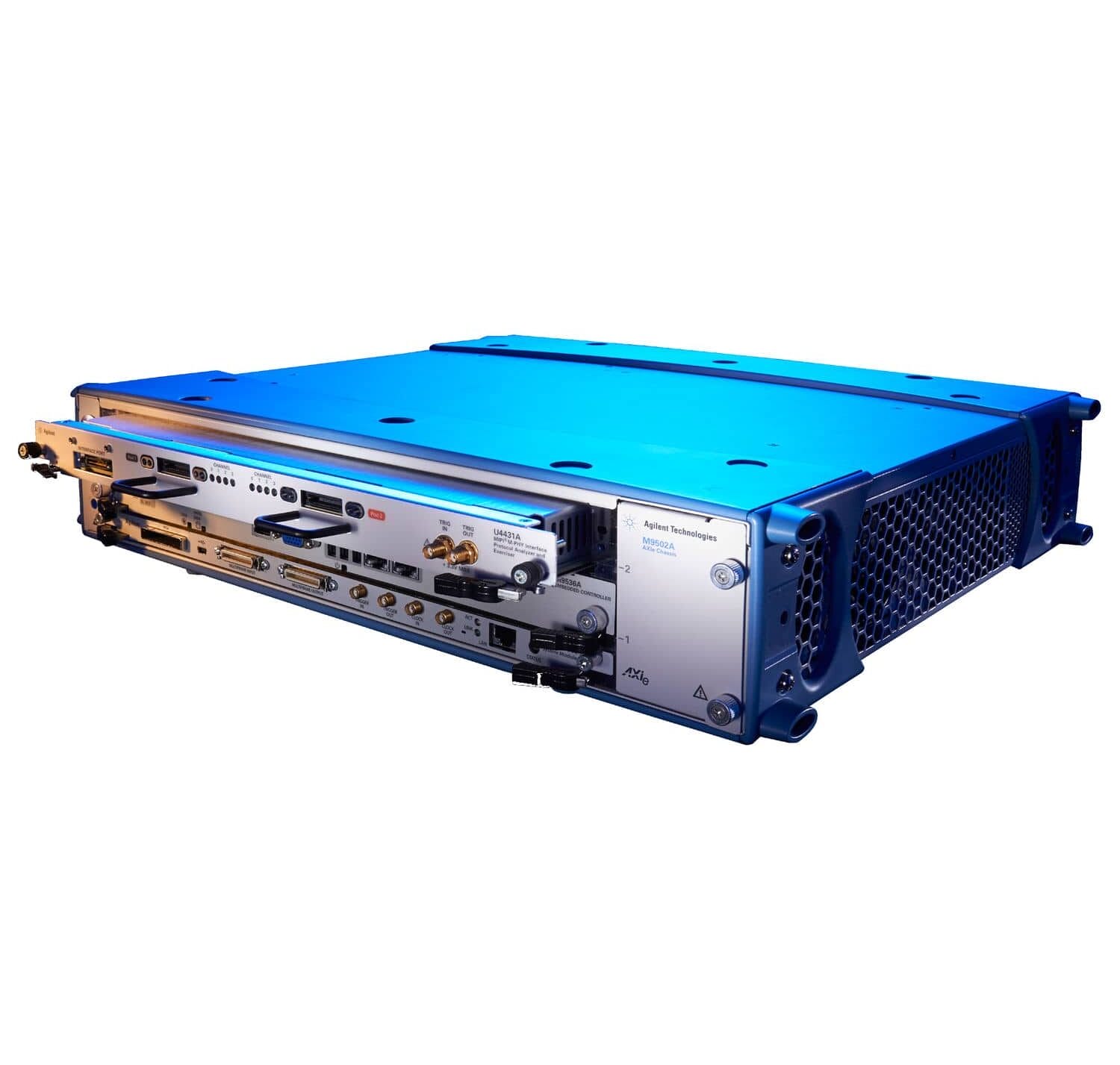

Keysight U4431A Protocol Analyzer
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Keysight U4431A Protocol Analyzer is a highly advanced and efficient tool used for capturing, analyzing, and debugging high-speed digital communication interfaces. It offers comprehensive protocol analysis capabilities for a wide range of protocols, including USB, PCIe, DisplayPort, and MIPI. With its real-time monitoring and analysis features, it provides users with valuable insights into the behavior and performance of their devices and systems. The U4431A is equipped with advanced triggering options, customizable protocol decoding, and powerful data visualization tools, making it an indispensable tool for engineers and developers working on the design and validation of high-speed digital interfaces. Its user-friendly interface and robust hardware make it a reliable and versatile solution for protocol analysis needs.
Specifications
– Can capture and analyze PCIe Gen3 and Gen4 protocols
– Supports x1, x2, x4, x8, and x16 lane widths
– Offers maximum data rate of 16 GT/s
– Provides up to 1 TB of trace storage
– Supports multiple trigger and filter conditions for efficient debugging
– Offers rich set of decoding capabilities for various protocol layers
– Allows real-time performance analysis with advanced triggering and filtering options
– Provides comprehensive error analysis and reporting features
– Supports both single-lane and multi-lane probing options
– Offers flexible connectivity options with USB and Ethernet interfaces
– Compatible with Keysight IO libraries and software applications for seamless integration and control
