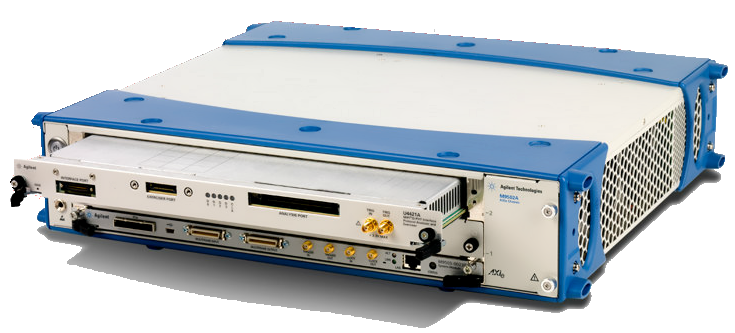

Keysight U4421A Protocol Analyzer
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Keysight U4421A Protocol Analyzer is a versatile and powerful tool designed for engineers and developers working with high-speed serial buses. It is capable of capturing, decoding, and analyzing data across a wide range of protocols, including USB, PCIe, and SATA. With its advanced features and intuitive user interface, the U4421A allows users to quickly identify and troubleshoot issues in their designs. The analyzer supports real-time monitoring and provides detailed reports, enabling users to gain valuable insights into the performance and behavior of their devices. The compact and portable design of the U4421A makes it convenient for both lab and field use, making it an essential tool for any engineer working with high-speed serial buses.
Specifications
– Protocol analyzer model: U4421A
– Supported protocols: USB, MIPI, I2C, SPI, UART, RS-232, RS-485, CAN, LIN, FlexRay, Ethernet, PCIe, SAS, SATA, Fibre Channel, Parallel, HDMI, DisplayPort, Thunderbolt, and others
– Maximum data rate: Up to 16 Gbps
– Maximum number of channels: 72 channels
– Memory depth: Up to 4 GB
– Trigger types: Event, protocol, time, state, bus, and others
– Protocol decoding: Real-time protocol decoding with interactive table view and search functions
– Protocol analysis features: Error checking, statistical analysis, performance analysis, hardware/software triggers, and more
– Data storage: Store captured data to local hard drive or external storage devices
– Display: High-resolution color display with customizable views and zooming capabilities
– Software compatibility: Compatible with Keysight software platforms and other third-party software tools
– Connectivity: USB, Ethernet, and PCIe interfaces for easy connection to a computer or network
– Power supply: AC power or optional battery operation
