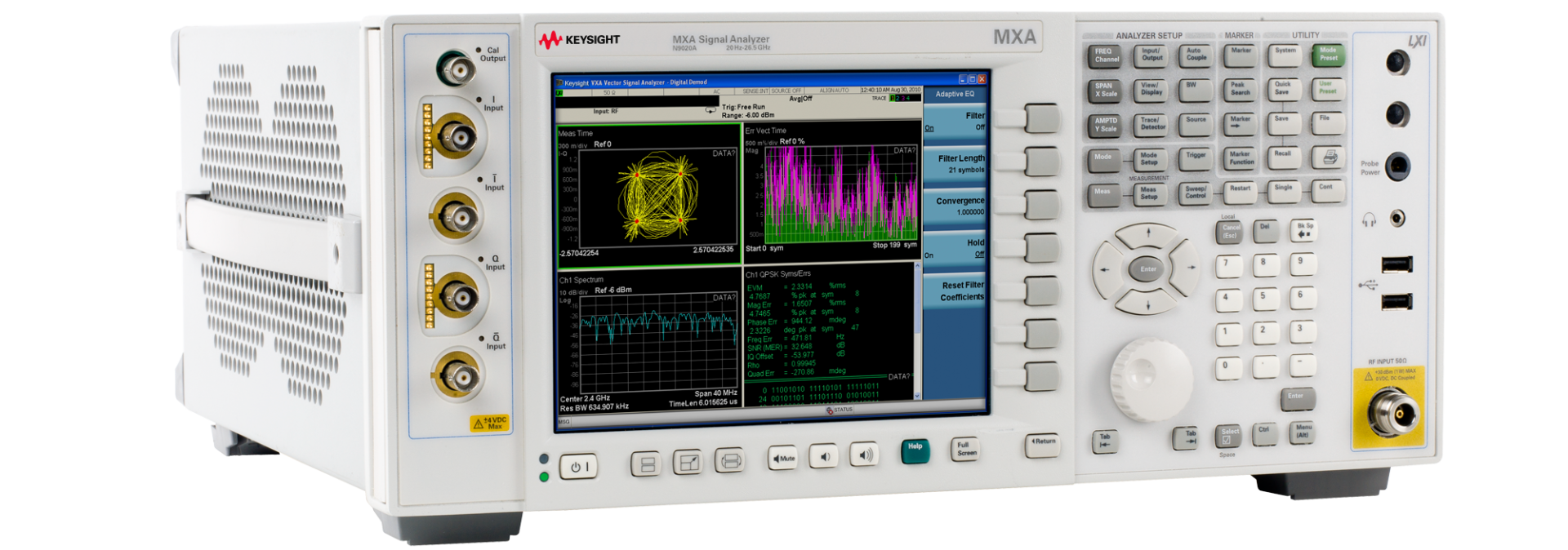

Keysight N9020A 10 Hz to 3.6 GHz MXA Signal Analyzer
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Keysight N9020A 10 Hz to 3.6 GHz MXA Signal Analyzer is a versatile and powerful tool used for signal analysis in various applications. It is equipped with several optional features and accessories such as the 503 B25 B40 BBA DP2 FS1 RTL PC4 SSD W7X N9060B-2FP N9063A-2FP 89601B-200 89601B-300 89601B-AYA N9060A-3FP/4FP/5FP/6FP/7FP. These additional components enhance the functionality and capabilities of the signal analyzer, allowing for more precise and comprehensive analysis of signals. With its wide frequency range and advanced features, the Keysight N9020A is a reliable and efficient tool for signal analysis in various industries.
Specifications
- Frequency range: 10 Hz to 3.6 GHz (expandable to higher frequencies)
- Frequency resolution: 0.01 Hz
- Maximum analysis bandwidth: 160 MHz
- Displayed average noise level (DANL): -157 dBm/Hz (typical, with preamp at 1 GHz)
- Phase noise: -113 dBc/Hz at 10 kHz offset (1 GHz)
- Third-order intercept (TOI): +15 dBm (typical)
- Amplitude accuracy: ±0.23 dB (at 50 MHz)
- Dynamic range: >114 dB
- Maximum input power: +30 dBm (1 W)
- Input impedance: 50 Ohms
- Sweep time range: 1 µs to 4000 s
- Connectivity: LAN, GPIB, USB, HDMI, removable solid-state drive (SSD)
- Modulation analysis: Supports AM, FM, PM, QAM, PSK, and other digital modulation types
- Real-time spectrum analysis: Optional feature
- Display: 10.4-inch color LCD touchscreen
- Dimensions: 426 mm width x 222 mm height x 460 mm depth
- Weight: 19.5 kg
- Operating temperature range: 0°C to 55°C
