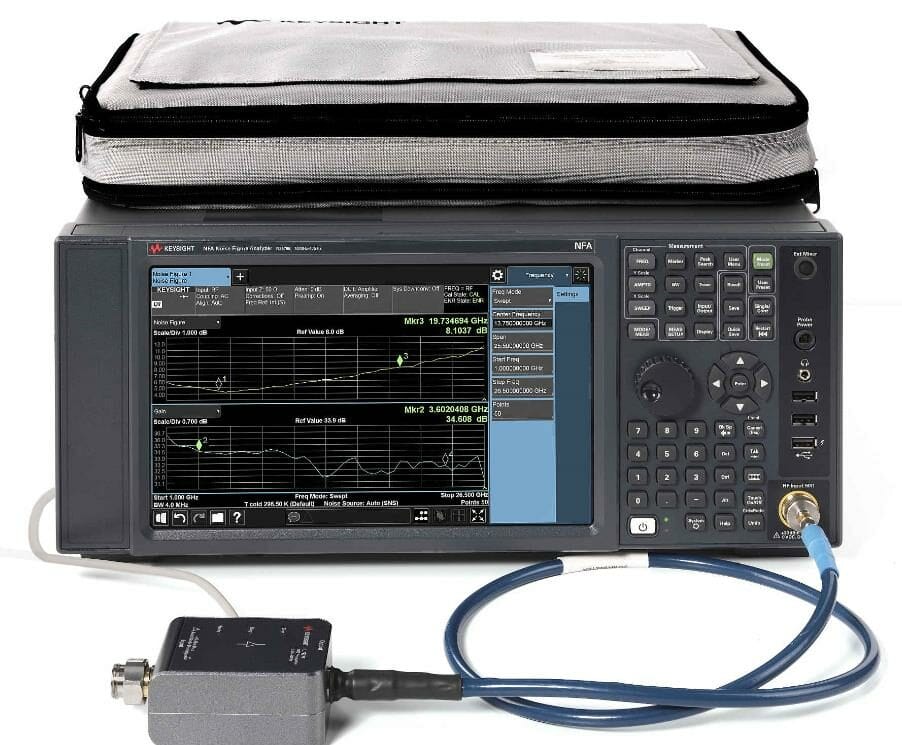

Keysight N8973B Noise Figure Analyzer
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Keysight N8973B Noise Figure Analyzer is an advanced and highly precise instrument designed for accurately measuring the noise figure and gain of various devices and components. With its wide frequency range and high sensitivity, this analyzer offers exceptional performance and reliability in noise figure measurements. It is equipped with a built-in noise source, which enables accurate noise figure measurements without the need for external devices. The N8973B also features a user-friendly interface with intuitive controls and a large color display, making it easy to navigate and analyze measurement results. Additionally, it offers various measurement modes and advanced analysis capabilities, allowing users to efficiently characterize and optimize the performance of their devices. Overall, the Keysight N8973B Noise Figure Analyzer is a versatile and powerful tool for noise figure measurement in research, development, and manufacturing applications.
Specifications
– Frequency range: 10 MHz to 3 GHz
– Noise figure measurement range: 0 to 30 dB
– Measurement uncertainty: ± 0.2 dB
– Measurement speed: 0.5 seconds per point
– Input power range: -30 dBm to + 10 dBm
– Input impedance: 50 Ω
– Display resolution: 0.01 dB
– Measurement modes: Noise figure, gain, and noise figure ratio
– Calibration: Internal and external calibration options
– Interfaces: USB, LAN, GPIB
– Dimensions: 427 mm x 177 mm x 411 mm
– Weight: 9.5 kg
