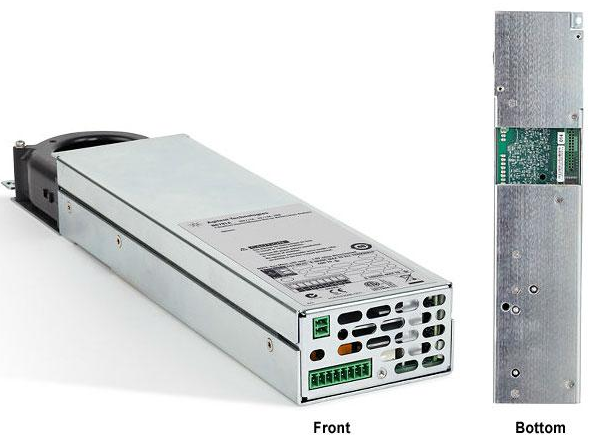

Keysight N6781A 2-Quadrant Source/Measure Unit For Battery Drain Analysis
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Keysight N6781A 2-Quadrant Source/Measure Unit is a highly advanced instrument designed for battery drain analysis. It offers precise and accurate measurements of current and voltage, allowing for a thorough understanding of a device’s power consumption behavior. With its two-quadrant operation, it can both source and sink current, enabling comprehensive testing of a device’s power supply and battery management systems. The unit boasts a wide dynamic range, making it suitable for analyzing power-hungry devices as well as low-power applications. Its intuitive user interface and software capabilities provide a seamless experience for users, allowing them to easily set up tests, collect data, and analyze results. The Keysight N6781A is an indispensable tool for engineers and researchers involved in battery drain analysis, enabling them to optimize power efficiency and prolong battery life in their devices.
Specifications
– Model: Keysight N6781A
– Type: 2-Quadrant Source/Measure Unit
– Application: Battery Drain Analysis
– Voltage Range: 0 to 20 V
– Current Range: 0 to 3 A
– Power: 60 W
– Source/Measure Channels: 1
– Measurement Resolution: 0.1 µA, 10 mV
– Measurement Speed: up to 100 ms per reading
– Compliance Voltage: up to 20 V
– Compliance Current: up to 3 A
– Voltage Accuracy: ±(0.05% + 10 mV)
– Current Accuracy: ±(0.2% + 100 µA)
– Programming Interfaces: USB, LAN, GPIB
– Software Support: BenchVue, MATLAB, LabVIEW
– Dimensions: 213 mm x 88 mm x 413 mm
– Weight: 4.6 kg
