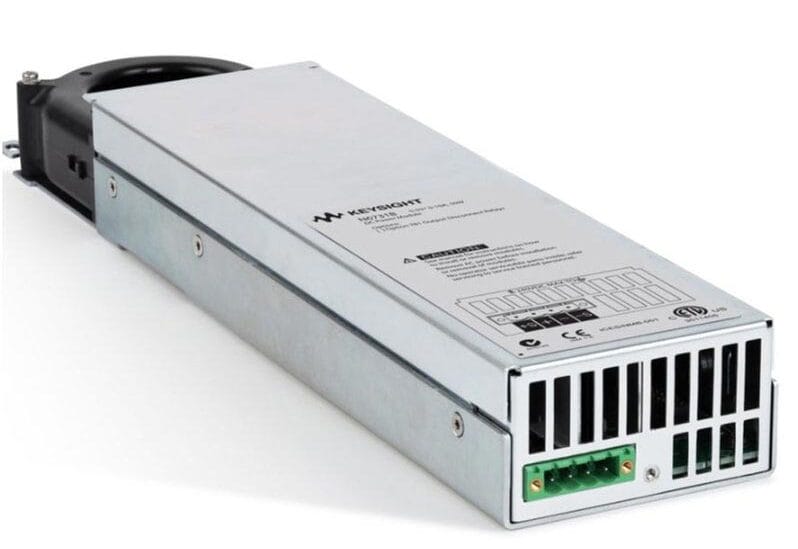

Keysight N6763A Precision DC Power Module
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Keysight N6763A Precision DC Power Module is a highly efficient and reliable power module designed to deliver precision and accuracy in DC power applications. With a wide voltage and current range, this module offers flexibility and versatility to meet various testing requirements. It features advanced measurement capabilities, such as voltage and current readback, and precise voltage and current programming. The N6763A ensures excellent power regulation and low output noise, making it suitable for applications that demand high stability and accuracy. Additionally, the module has built-in protection features that safeguard the device under test from overvoltage, overcurrent, and overtemperature conditions. Overall, the Keysight N6763A Precision DC Power Module is an indispensable tool for engineers and researchers involved in power testing and characterization, providing them with reliable and precise power delivery capabilities.
Specifications
– Measurement range: 0 to 20 V, 0 to 5 A
– Voltage programming accuracy: ± (0.04% + 20 mV)
– Current programming accuracy: ± (0.15% + 5 mA)
– Voltage reading accuracy: ± (0.04% + 20 mV)
– Current reading accuracy: ± (0.15% + 5 mA)
– Load regulation: ≤ 10 mV
– Line regulation: ≤ 2 mV
– Ripple & noise (20 Hz to 20 MHz): ≤ 3 mVrms, ≤ 30 mVpp
– Output voltage resolution: 1 mV
– Output current resolution: 0.1 mA
– Digital interface: USB, LAN (LXI Core 2011 compliant)
– Dimensions: 109 mm x 213 mm x 318 mm
– Weight: 2.8 kg
