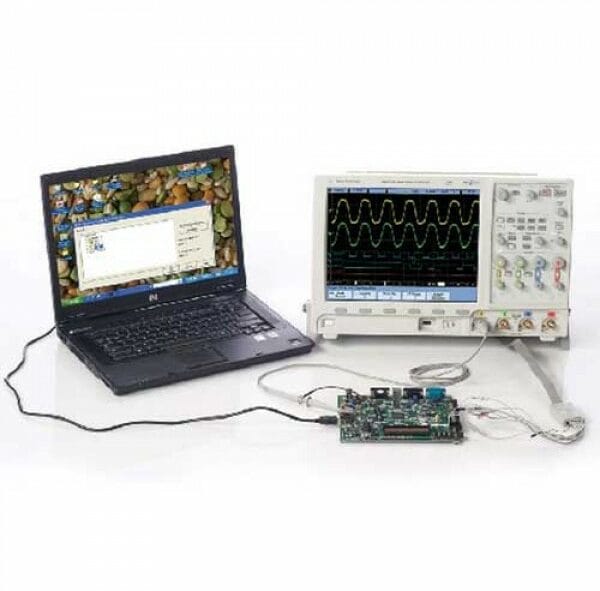

Keysight N5434A Logic Analyzer
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Keysight N5434A Logic Analyzer is a powerful and efficient tool used for debugging and analyzing digital systems. It offers an extensive range of capabilities, allowing engineers to capture and analyze digital signals with precision and accuracy. With its high-performance hardware and advanced software features, this logic analyzer provides insights into complex digital designs, helping engineers identify and resolve issues quickly. It offers a wide variety of trigger options, protocol decoding, and advanced measurement capabilities, making it an essential tool for digital system development and validation. The Keysight N5434A Logic Analyzer is designed to streamline the debugging process, improve productivity, and ensure the reliability of digital systems.
Specifications
– Model: Keysight N5434A
– Type: Logic Analyzer
– Number of Channels: 68
– Maximum State Speed: 4 Gb/s
– Maximum Timing Speed: 4 GHz
– Input Impedance: 100 kΩ
– Voltage Range: -2 V to +7 V
– Memory Depth: 2 Mb per channel
– Trigger Modes: Edge, Pattern, State, Sequence, Glitch, Setup/Hold
– Maximum Trigger Sequences: 16
– Trigger Input/Output: 8 channels
– Data Rate: Up to 400 Mb/s
– Protocol Support: I2C, SPI, UART, RS-232, USB, CAN, LIN, FlexRay, MIL-STD-1553, ARINC 429, Ethernet, DDR, HDMI, MIPI D-PHY, PCIe, SATA, SAS, USB 3.0, Thunderbolt, DisplayPort
– Display: 15-inch color LCD with touch-screen interface
– Connectivity: USB, LAN, GPIB
– Power Requirements: 100-240 V AC, 50/60 Hz
– Dimensions: 17.6 x 13.7 x 7.7 inches
– Weight: 21.6 lbs
