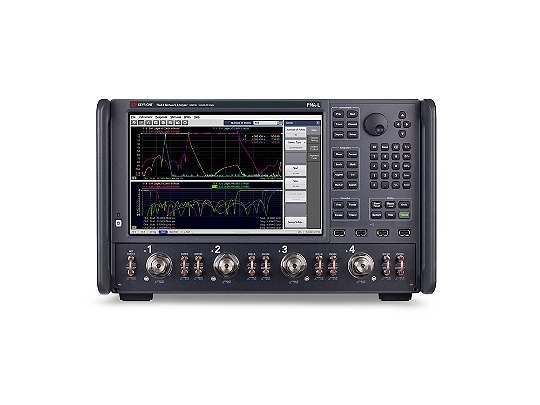

Keysight N5231B Vector Network Analyzer
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Keysight N5231B Vector Network Analyzer is an advanced and highly accurate instrument used for analyzing and characterizing the performance of electrical networks. It offers a wide frequency range, from 10 MHz to 13.5 GHz, allowing for precise measurements across a broad spectrum. With its multiple measurement capabilities, including S-parameters, time-domain analysis, and noise figure measurements, this analyzer is an indispensable tool for engineers and researchers working in fields such as telecommunications, aerospace, and defense. Its user-friendly interface and intuitive software make it easy to perform complex measurements and analyze the data efficiently. The N5231B VNA is known for its exceptional accuracy, stability, and reliability, making it a trusted instrument for demanding applications that require precise network analysis.
Specifications
– Frequency range: 10 MHz to 13.5 GHz
– Measurement ports: 2
– Dynamic range: 128 dB
– Output power range: -50 dBm to +10 dBm
– Measurement speed: 4 ms per point
– Number of points: up to 20001
– Measurement capabilities: S-parameters, gain compression, harmonic distortion, noise figure, intermodulation distortion
– Display: 10.4-inch color touchscreen
– Connectivity: USB, LAN, GPIB
– Weight: 11 kg
– Dimensions: 423 mm x 288 mm x 147 mm
Laboratory Calibration
Micro Precision operates 36 laboratories globally providing reliable localized support
- Certified metrologists staffing laboratories in North America, Central America, South America, Europe, Asia, and the Middle East
- Comprehensive scopes of accreditation to meet a broad range of customer needs
- Expedited calibration services available
- Pickup and delivery services available
- Environmentally controlled facilities to ensure high quality and accurate calibrations and measurements.
Laboratory Calibration
Micro Precision operates 36 laboratories globally providing reliable localized support
- Certified metrologists staffing laboratories in North America, Central America, South America, Europe, Asia, and the Middle East
- Comprehensive scopes of accreditation to meet a broad range of customer needs
- Expedited calibration services available
- Pickup and delivery services available
- Environmentally controlled facilities to ensure high quality and accurate calibrations and measurements.
Quality Certified Test Equipment Repair Services
When a piece of equipment fails you have the option to repair or replace that item. Oftentimes repair is an economical and efficient solution. Micro Precision’s repair offering provides advantages to our customers:
- Cost effective; often less than OEM
- Efficient; often much better turn-time than the OEM
- Flexibility; willingness to work with customers to meet their needs
- Warranted repairs
- Ability to service many obsolete instruments
Quality Certified Test Equipment Repair Services
When a piece of equipment fails you have the option to repair or replace that item. Oftentimes repair is an economical and efficient solution. Micro Precision’s repair offering provides advantages to our customers:
- Cost effective; often less than OEM
- Efficient; often much better turn-time than the OEM
- Flexibility; willingness to work with customers to meet their needs
- Warranted repairs
- Ability to service many obsolete instruments
Cost Effective Test Equipment Options
From the leasing of specialized electronic equipment for a specific task, to the purchase of physical and dimensional tools, we offer leasing services as well as used test equipment sales. We also locate hard-to-find electronics, and provide flexible options to meet ever-changing equipment needs.
Cost Effective Test Equipment Options
From the leasing of specialized electronic equipment for a specific task, to the purchase of physical and dimensional tools, we offer leasing services as well as used test equipment sales. We also locate hard-to-find electronics, and provide flexible options to meet ever-changing equipment needs.
Our Capabilities
Micro Precision can perform instrument calibration services on equipment from variety of applications for specific industries and lines of business. If you have a calibration need that is not listed in this area, please contact us.
Electrical
Micro Precision accredited electrical calibration lab services with multimeter, multifunction calibrator, oscilloscope, and power supply capabilities.
Optical
Micro Precision accredited optical, light, and fiber optic calibration lab services.
Thermodynamics & Chemical
Micro Precision accredited thermodynamic & chemical calibration lab services with temperature, humidity, life science, and pharma capabilities.
RF - Microwave
Micro Precision accredited RF & microwave calibration lab services.
Mechanical & Dimensional
Micro Precision accredited mechanical and dimensional calibration lab services with pressure, torque, force, flow, velocity, and aircraft jack load capabilities.
Laboratory Standards
Calibration laboratory standards are critical for your organization’s most accurate measurements.
Semiconductor Calibration
Micro Precision utilizes state-of-the-art technology to analyze semiconductor wafer thickness and step height.
