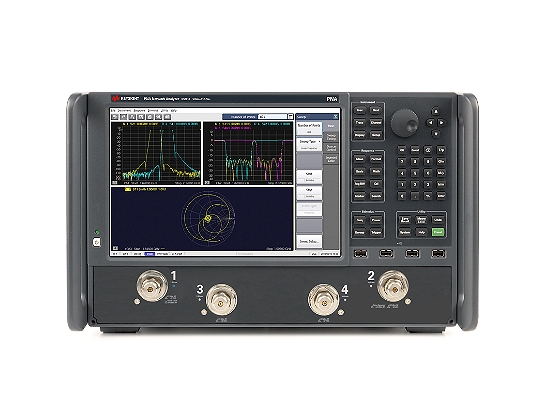

Keysight N5227B Vector Network Analyzer
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Keysight N5227B Vector Network Analyzer is a high-performance instrument used in the field of RF and microwave measurements. It offers accurate and reliable analysis of the electrical performance of various devices and components, such as amplifiers, filters, and antennas. The N5227B provides a wide frequency range from 10 MHz to 67 GHz, allowing for comprehensive testing and characterization of both passive and active devices. Equipped with advanced features like time-domain analysis and multiport capabilities, this vector network analyzer enables engineers and researchers to efficiently analyze and troubleshoot complex systems. With its exceptional measurement speed and dynamic range, the Keysight N5227B is an essential tool for professionals working in industries such as telecommunications, aerospace, and defense.
Specifications
– Frequency range: 10 MHz to 67 GHz
– Maximum number of ports: 4
– Dynamic range: up to 140 dB
– Measurement speed: up to 3.5 µs per point
– Output power range: -40 dBm to +12.5 dBm
– Trace noise: <0.001 dB rms at 70 kHz IFBW
– Measurement accuracy: ±0.1 dB magnitude, ±0.5° phase
– Measurement channels: up to 32 channels
– Operating temperature range: 5°C to 40°C
– Weight: 22.7 kg (50 lb)
