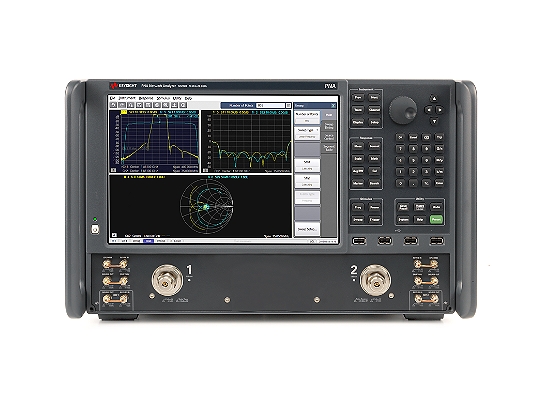

Keysight N5222B Vector Network Analyzer
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Keysight N5222B Vector Network Analyzer is a powerful and versatile instrument used for measuring and characterizing the electrical performance of high-frequency devices and systems. With its advanced capabilities, it enables engineers and researchers to analyze the behavior of components such as amplifiers, filters, and antennas. The N5222B offers a wide frequency range, from 10 MHz to 26.5 GHz, and provides accurate and reliable measurements with excellent dynamic range and low trace noise. Its intuitive user interface and advanced measurement features make it easy to perform complex measurements and obtain valuable insights into the performance of RF and microwave circuits. Overall, the Keysight N5222B Vector Network Analyzer is a valuable tool for professionals working in various industries, including telecommunications, aerospace, and defense, enabling them to design and optimize high-frequency systems with confidence.
Specifications
– Frequency range: 10 MHz to 26.5 GHz
– Dynamic range: > 100 dB
– Measurement speed: 4 µs per point
– Number of measurement channels: 2
– Output power range: -40 dBm to +10 dBm
– Receiver sensitivity: -120 dBm at 10 MHz
– Accuracy: ±0.05 dB magnitude, ±0.2 degrees phase
– Measurement ports: 2
– Display: 12.1-inch color touch screen
– Interfaces: USB, LAN, GPIB, VGA
– Weight: 11.5 kg
Keysight N5222B is also known or formerly known as:
- Agilent Technologies N5222B Network Analyzer – PNA – 10MHz-26.5GHz
