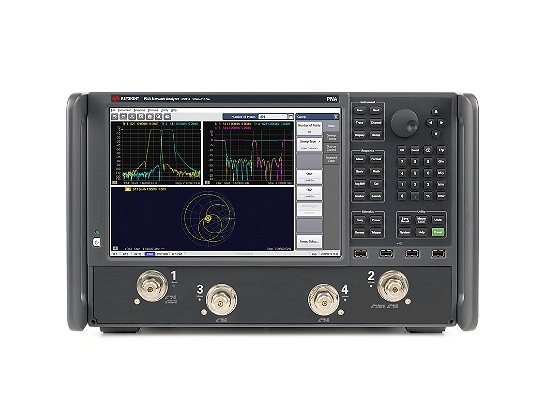

Keysight N5221B Vector Network Analyzer
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Keysight N5221B Vector Network Analyzer is a highly advanced and versatile instrument used for measuring the performance of electronic components and systems. It offers exceptional accuracy, speed, and flexibility, making it an ideal choice for various applications in research, development, and manufacturing industries. The N5221B VNA provides precise measurements of the magnitude and phase of electrical signals, allowing engineers and technicians to analyze the behavior of devices such as filters, amplifiers, antennas, and circuits. Its wide frequency range, extensive dynamic range, and excellent stability ensure reliable and repeatable results. With its user-friendly interface and intuitive software, the N5221B makes complex measurements and analysis tasks straightforward and efficient. Overall, the Keysight N5221B Vector Network Analyzer is a cutting-edge solution that empowers professionals in the electronics field to enhance their designs, optimize performance, and accelerate the development process.
Specifications
– Frequency range: 10 MHz to 13.5 GHz
– Dynamic range: 100 dB
– Measurement speed: 4 μs per point
– Number of measurement ports: 2
– Output power range: -50 dBm to +10 dBm
– Directivity: > 40 dB
– Measurement accuracy: ±0.04 dB
– Measurement uncertainty: ±0.004 dB
– Trace noise level: < 0.001 dB rms
– Input impedance: 50 Ω
– Maximum number of points per sweep: 4,001
– Interface options: USB, GPIB, LAN
– Weight: 19.6 kg (43.2 lbs)
– Dimensions: 425 mm x 223 mm x 550 mm (16.7 in x 8.8 in x 21.7 in)
