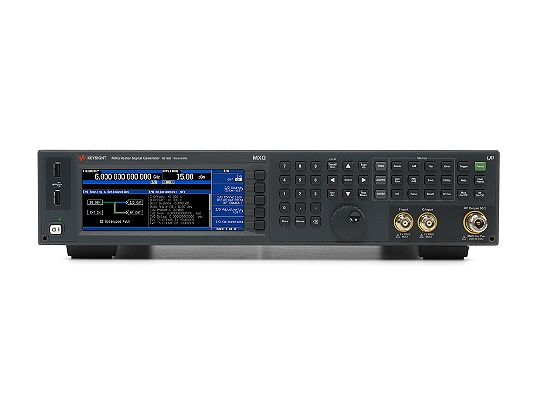

Keysight N5182B Mxg X-Series Rf Vector Signal Generator, 9 Khz To 6 Ghz
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Keysight N5182B MXG X-Series RF Vector Signal Generator is a highly advanced and versatile instrument designed for a wide range of RF signal generation applications. With a frequency range spanning from 9 kHz to 6 GHz, this signal generator offers precise and reliable output across various frequency bands. Its vector signal capability enables the generation of complex modulated signals, making it ideal for testing and designing wireless communication systems. The N5182B MXG X-Series is equipped with advanced features such as high signal purity, low phase noise, and excellent amplitude accuracy, ensuring the generation of high-quality signals for demanding applications. Additionally, it offers flexible connectivity options, including LAN, USB, and GPIB, making it easy to integrate into various test setups. Overall, the Keysight N5182B MXG X-Series RF Vector Signal Generator is a powerful and reliable instrument that meets the demanding requirements of modern RF signal generation.
Specifications
– Frequency range: 9 kHz to 6 GHz
– Output power: -144 dBm to +19 dBm
– Phase noise: -126 dBc/Hz at 1 GHz, 20 kHz offset
– Spectral purity: < -56 dBc at 1 GHz, +10 dBm output power
– Amplitude accuracy: ± 0.5 dB
– Frequency switching speed: < 900 μs
– Modulation types: AM, FM, ØM, pulse, and more
– Modulation bandwidth: 120 MHz
– Internal baseband generator: 160 MHz
– External I/Q inputs: up to 200 MHz
– RF connectors: 50 ohm, SMA female
– Display: 7-inch color touch screen
Keysight N5182B is also known or formerly known as:
- Agilent Technologies N5182B Vector Signal Generator – MXG – X-Series – RF – 9kHz-3 or 6GHz
