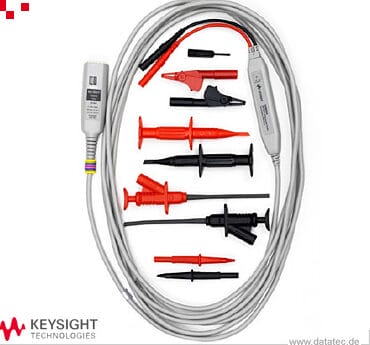

Keysight N2805A High Voltage Differential Probe
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Keysight N2805A High Voltage Differential Probe is a highly advanced and versatile tool designed to accurately measure high voltage signals in a wide range of applications. This probe offers a differential measurement range of up to 7000V, making it suitable for tasks that involve high voltages such as power electronics, electric vehicles, and industrial automation. With its high bandwidth and low noise characteristics, the N2805A ensures precise measurements with minimal interference or distortion. The probe is also equipped with various safety features, including a CAT II 1000 V rating and overvoltage protection, ensuring user safety even in challenging testing environments. Overall, the Keysight N2805A High Voltage Differential Probe is a reliable and efficient solution for professionals working with high voltage systems and seeking accurate measurements.
Specifications
– Bandwidth: DC to 1.5 GHz
– Input voltage range: ± 1400 V (DC + peak AC)
– Input resistance: 10 MΩ
– Input capacitance: 1.2 pF
– Common mode rejection ratio (CMRR): > 50 dB up to 60 MHz, > 40 dB up to 500 MHz
– Maximum differential voltage: 2800 V (DC + peak AC)
– Maximum common mode voltage: 2800 V (DC + peak AC)
– Maximum differential common mode voltage: 4000 V (DC + peak AC)
– Maximum offset voltage: ± 2000 V
– Maximum slew rate: 400 V/µs
– Maximum input power: 2 W (continuous), 10 W (peak)
– Output voltage range: ± 2 V (DC + peak AC)
– Output impedance: 50 Ω
– Connector type: BNC (input and output)
– Power supply: +15 VDC, -15 VDC, +5 VDC (via external power supply)
