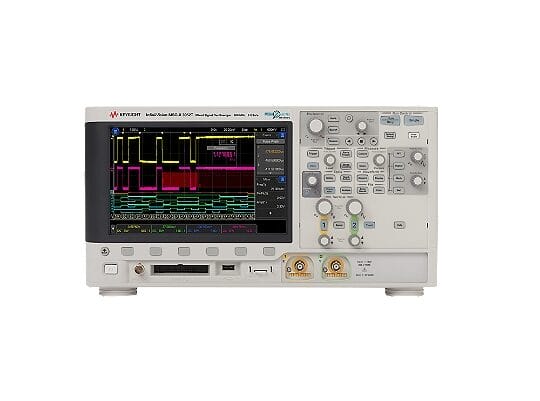

Keysight Msox3052T Oscilloscope
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Keysight MSOX3052T Oscilloscope is a highly advanced and versatile instrument that is widely used in various electronic applications. It is equipped with a 500 MHz bandwidth, two analog channels, and 16 digital channels, making it suitable for a wide range of testing and measurement needs. The MSOX3052T offers a large touch-screen display with intuitive user interface, allowing for easy navigation and efficient operation. It also features advanced triggering capabilities, waveform analysis tools, and a deep memory of up to 4 Mpts, enabling users to capture and analyze complex waveforms with high accuracy. With its impressive performance and extensive features, the Keysight MSOX3052T Oscilloscope is a reliable and indispensable tool for engineers, technicians, and researchers in the field of electronics.
Specifications
– Model: Keysight Msox3052T
– Type: Mixed Signal Oscilloscope
– Bandwidth: 500 MHz
– Channels: 2 analog, 16 digital
– Sample Rate: 4 GSa/s
– Memory Depth: 4 Mpts
– Vertical Resolution: 8 bits
– Maximum Input Voltage: 300 V CAT II
– Input Coupling: AC, DC, GND
– Trigger Types: Edge, Pulse Width, Runt, Timeout, Pattern, State, Setup/Hold, Delay, Rise/Fall Time
– Display: 8.5-inch capacitive touch screen
– Connectivity: USB, LAN, GPIB
– Supported Probes: Passive, Active, Current, Differential, High Voltage, Logic
– Waveform Update Rate: 1,000,000 waveforms/s
– Math Functions: FFT, Addition, Subtraction, Multiplication, Division, Integration, Differentiation
– Serial Protocol Analysis: I2C, SPI, UART/RS232, CAN, LIN, FlexRay, MIL-STD-1553
– Power Supply: 100-240 VAC, 50/60 Hz
– Dimensions: 429.3 mm x 216.2 mm x 142.2 mm
– Weight: 5.9 kg
