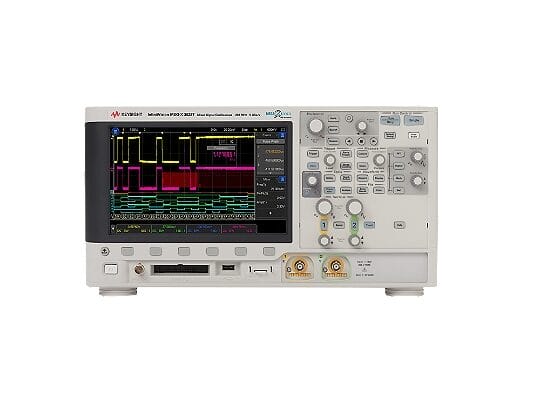

Keysight Msox3022T Oscilloscope
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Keysight MSOX3022T Oscilloscope is a highly advanced and versatile instrument used in the field of electronic testing and measurement. It offers a wide range of features and capabilities, making it a valuable tool for engineers and technicians. With its two analog and 16 digital channels, this oscilloscope allows for precise and accurate signal analysis. It also boasts a high waveform update rate and deep memory depth, enabling users to capture and analyze complex waveforms with ease. The MSOX3022T is equipped with a large display screen and an intuitive user interface, making it user-friendly and convenient to operate. Additionally, it supports various triggering and decoding options, making it suitable for a wide range of applications. Overall, the Keysight MSOX3022T Oscilloscope is a powerful and reliable instrument that delivers exceptional performance and functionality in electronic testing and measurement.
Specifications
– Model: Keysight MSOX3022T
– Bandwidth: 200 MHz
– Sample rate: 2 GSa/s
– Channels: 2 analog + 16 digital
– Analog bandwidth: 200 MHz
– Rise time: ≤1.75 ns
– Memory depth: 4 Mpts
– Display: 8.5-inch WVGA color TFT LCD
– Vertical resolution: 8 bits
– Waveform update rate: 1,000,000 wfms/s
– Timebase range: 1 ns/div to 2000 s/div
– Input impedance: 1 MΩ ± 1% || 13 pF ± 2 pF
– Trigger types: Edge, pulse width, pattern, runt, state, setup and hold, window, timeout, serial protocol, bus, video, and I²C/SPI
– Connectivity: USB 2.0, LAN, GPIB (optional)
– Power supply: 100-240 VAC, 50/60 Hz
– Dimensions: 13.8 x 5.7 x 8.3 inches (W x H x D)
– Weight: 10.8 lbs (4.9 kg)
